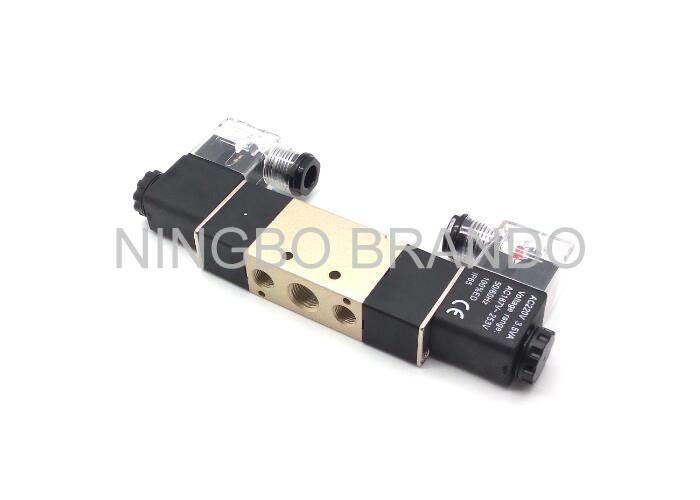

Double-head Three-position Close Type Pneumatic Cylinder Valve
The Double-head Three-position Close Type Pneumatic Cylinder Valve is one of high quality product of our company. The wiring form can be lead wire or connector type and both of two have different colors for you to choose. We provide high services to make you feel better.
Quick Informations:
1. Shortest Excitation Time: 0.05 Second
2. Working Mdium: 40 Micron Filtered Air
3. Voltage Range: 5-50°C
4. Port Size: Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"
Specification of 4V230c-08 Pneumatic Cylinder Valve:
| Position and Way No. | Two-position Five-way |
| Power Consumption | +/-10% |
| Max. Pressure Resistance | 1.0MPa |
| Motion Pattern | Inner Guide Type |
| Power Consumption | AC 4.5VA DC 3W |
| Insulation and Protection Class | F Class. IP65 |
| Wiring Form | Lead Wire or Connector Type |
| Highest Action Frequency | 5 Cycle/Sec |
| Working Pressure | 0.15-0.8MPa
|

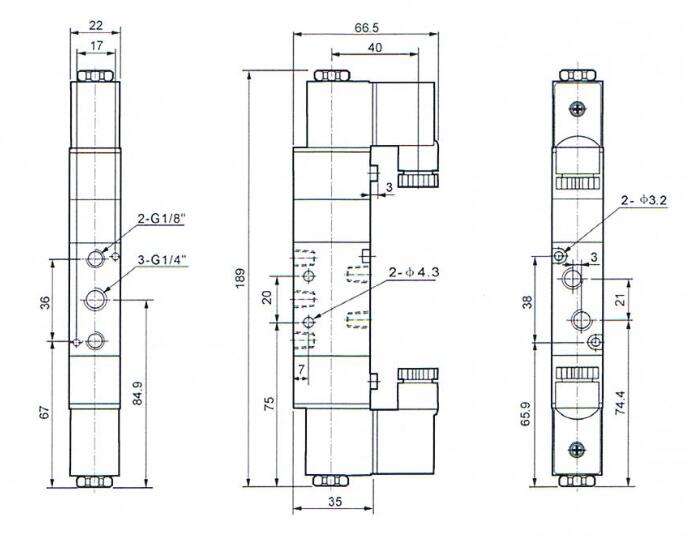

The Structure Diagram:
Advantages of the Valve:
1. Wide application and can be used in many area
2. A little bit dustproof
3. Quicky directional changing, fast speed.
4. The power is low, only 3W.
5. Excellent material, precise process, fine shape.
6. Special technology for bore, low friction force, low start pressure.
The questions you may want to know:
About samples:
We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air, by express ect. Any question about samples, please contact us.
For OEM products
We will finish the production within 20 days after payment has been confirmed.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
About delivery and shipping
We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our
mission.
Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
Some pictures to show by different way:

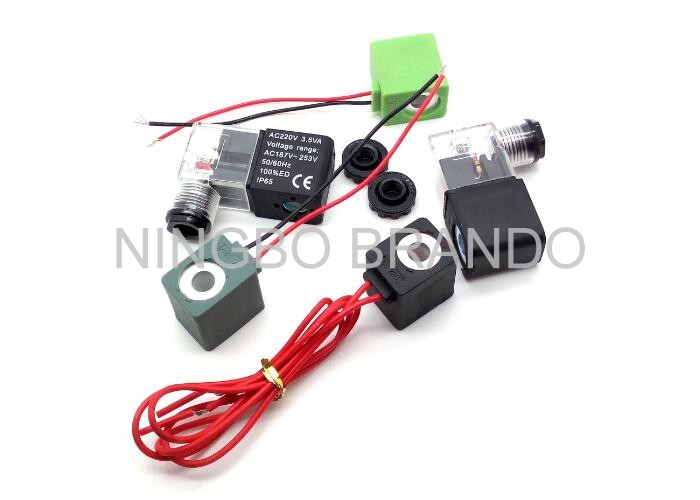

We produce other kind valve and you can choose the different color coil you like
Welcome your any question, we will response at once. We also can produce as customized.
Welcome your drawing or sample.
