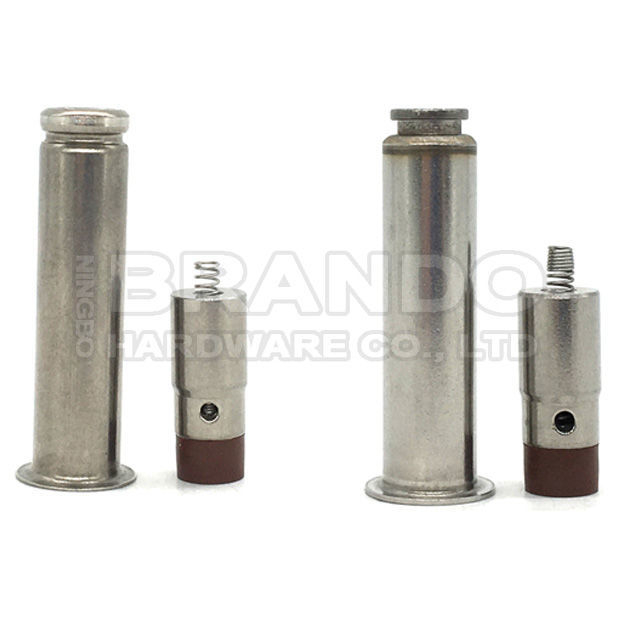

SBFEC Type Pulse Jet Valve Solenoid Armature Plunger Tube Assembly

SBFEC Type Pulse Jet Valve Solenoid Armature Plunger Tube Assembly

This is a solenoid armature for SBFEC Pulse Valve DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-Y-102S;

Pulse jet valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.

Dimension & Data of Armature, Coil for BFEC Pulse Valve:

Video of Solenoid Armature For SBFEC Pulse Valve:

BRANDO Solenoid Valve Armature Production Video:

More BFEC Pulse Valves for you to choose:

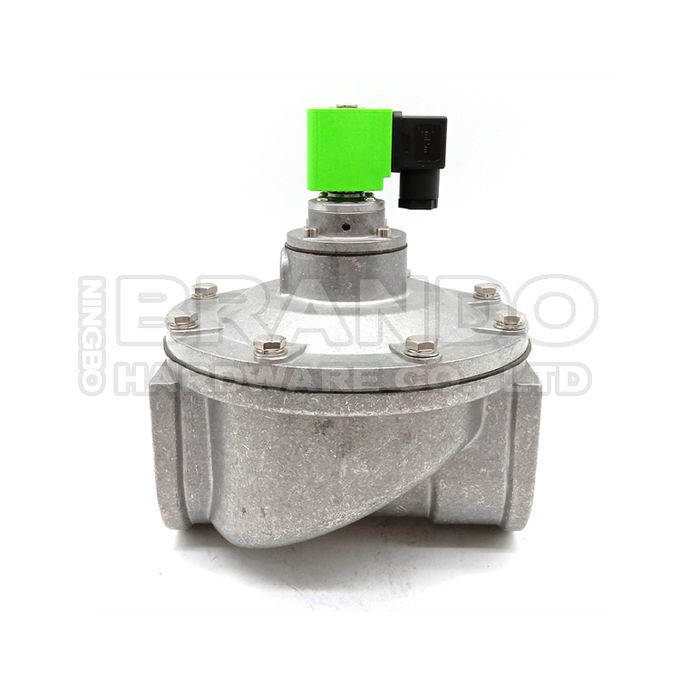

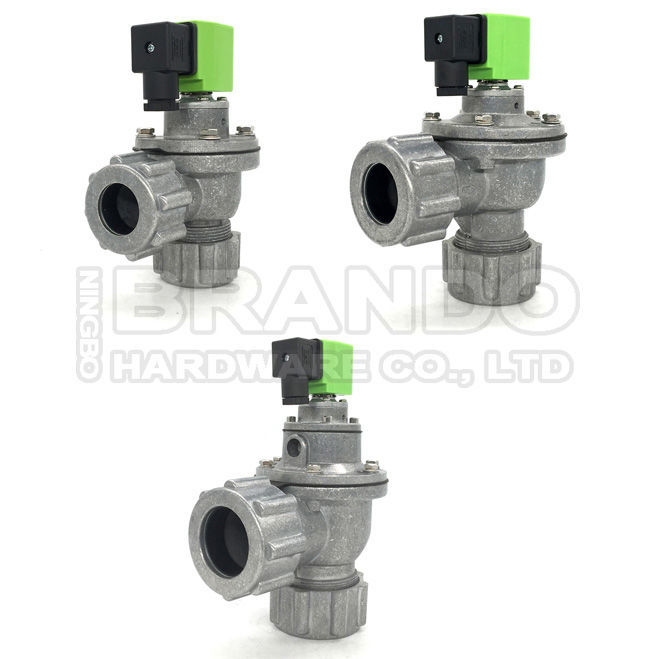

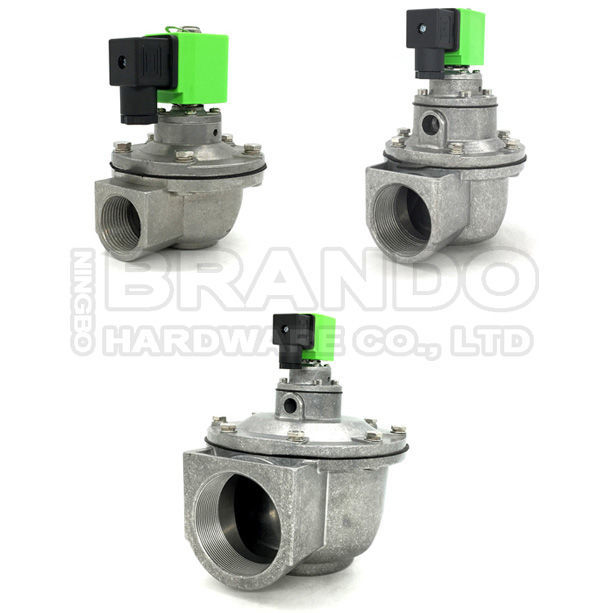

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

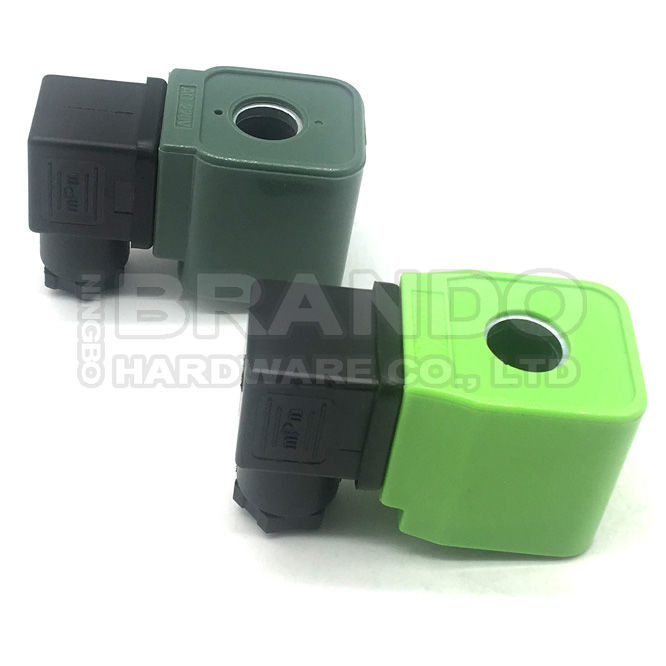

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

SBFEC Pulse Valve Armature

SBFEC Pulse Valve Plunger

SBFEC Pulse Valve Armature Plunger

SBFEC Type Pulse Jet Valve Solenoid Armature Plunger Tube Assembly Images
