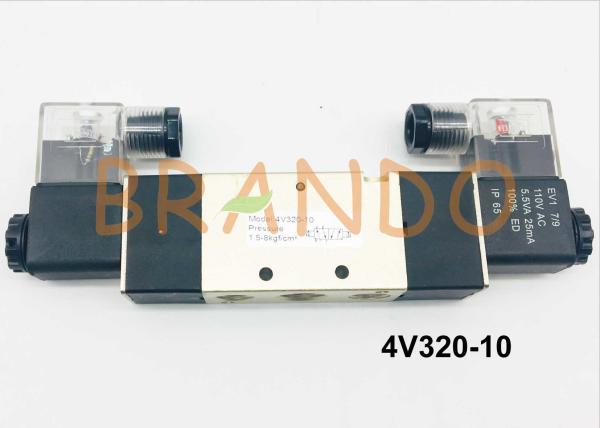

Pneumatic Power Solenoid Valve 4V320-10 Medium for Filtered Air with 0.15-0.8MPa Working Pressure
The Automation Industry Development has risen every day.Esspecially Automation Valve,like Pneumatic Valve.The Pneumatic Valve can be applicated in many positions.According to the diifferent voltages,matrrials and other information,there are various of Pneumatic Valve available.4V series got big success.
| Model | 4V310-10 | 4V320-10 | 4V330-10 |
| Position No. | Two-Position Five-Way | Three-Position Five Way |
| Effective sectional area | 30mm²(CV=1.68) | 18mm²(CV1.00) |
| Port size | 3/8’’ |
| Fluid | 40 micron filtered air |
| Action style | Internal pilot |
| Working pressure range | 1.2Mpa |
| Ambient Temp | 5~50’C |
| Voltage range | ±10% |
| Power consumption | AC:4.5VA DC:3W |
| Insulation and Protection | Class F IP65 |
| Frequency | 20t/s |
| Response time | 50ms |
Main Features of 4V310-10:
1, Double control solenoid valves have memory function.
2, Internal hole adopts special processing technology which has little
attrition friction ,low start pressure and long service life.
3, No need to add oil for lubrication.
4, It is available to from integrated valve group with the base to save
installation space.
5, Affiliated manual devices are equipped to facilitate installation and debugging
6, Several standard voltage grades are optional.
7. sliding column structure, good sealing, responsive;
Instructions:
1. check the components before use, whether they are damaged during transportation, then install and use them.
2. when installing, please pay attention to the direction of gas flow and whether the nozzle is correct.
3. Installation, pay special attention to whether the voltage meets the requirements, the whole machine debugging, it is recommended to use manual device debugging, and then power-on debugging.
4. please pay attention to dust prevention and suggest installing muffler at the exhaust port.
5.When connecting the pipeline, pay attention to the winding of the stop strip not to exceed the tooth end surface, and pay attention to the elimination of pipe joints, metal particles in the pipe, dust and oil pollution.
The Installation Notic:
1. Pay attention to check the pneumatic solenoid valve before use, and check whether it is damaged during transportation, and then install and use it.
2. When installing the pneumatic solenoid valve, please pay attention to the direction of gas flow and whether the nozzle is correct.
3. When using, please strictly comply with all technical requirements, such as working voltage, operating frequency, working pressure, operating temperature, etc.; When debugging the whole machine, it is recommended to first use manual device debugging, and then power debugging.
4. Please pay attention to dust control. It is recommended to install a muffler at the exhaust port.
The Working principle
There is a close cavity in the solenoid valve, and there are through holes in different positions. Each hole leads to different tubing. There are valves in the middle of the cavity and two electromagnets on both sides. Hydraulic oil enters different drain pipes and then pushes the piston of the cylinder through the pressure of the oil. The piston then drives the piston rod, which drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current of the electromagnet.
