Black Color 1/8'' Pipe Five-Position Two-Way Electromagnetic Pneumatic Valve 4V130-06
Pneumatic valves are valves that are driven by compressed air. When purchasing pneumatic valves, only the specifications, categories, and working pressures meet the procurement requirements. They can be used to control various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. flow.

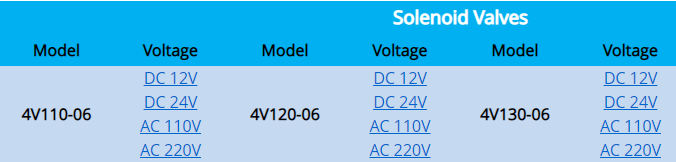

| Model No. | 4V130-06 |
| Maximum pressure resistance | 1200kpa |
| Operating temperature | 5-50℃ |
| Voltage range | -10%~10% |
| Energy consumption | AC:2.5 VA DC:2.5w |
| Protection rate | IP 65 |
| Wiring form | Lead Wire type |
| Maximum working frequency | 300 cycles per minute |
| Working Medium | 40 Micron Filtered Air |
The Operating Structure
1. The opening and closing direction of the pneumatic valve should be closed clockwise. 2, due to the pneumatic valve in the pipe network, often manual opening and closing, the number of opening and closing rotation should not be too much, that is, the large diameter valve should also be within 200-600 rpm. 3. In order to facilitate the opening and closing operation of a person, the maximum opening and closing torque should be 240N-m under the condition of pipeline pressure. 4, pneumatic valve opening and closing operation end should be square, and the size is standardized, and facing the ground, so that people can directly operate from the ground. Valves with discs are not suitable for underground pipe networks.
Performance test
When a certain specification of a valve is manufactured in batches, an authoritative organization shall be entrusted to perform the following performance tests:
1 The opening and closing torque of the valve under the working pressure condition; 2 Under the condition of working pressure, it can ensure the tight closing and closing times of the valve; 3 The detection of the flow resistance coefficient of the valve under the condition of pipeline water delivery.
The valve should be tested as follows before leaving the factory:
1 When the valve is open, the valve body should be subjected to internal pressure detection twice the valve pressure value; 2 Under the closed condition of the valve, the two sides respectively withstand 1.1 times the valve pressure value, no leakage; but the metal sealed butterfly valve, the leakage value is not greater than the relevant requirements.
Why you Choose Us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
