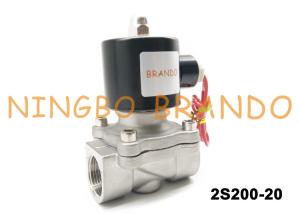

AC220V 3/4 Inch Normal Close 2/2 Way Uflow Stainless Steel Body Solenoid Valve Customized
2S200-20 AC220V voltage is an electromagnetic valve, stainless steel, aluminum alloy, appropriate is used in the field of circulation time longer control, adopting direct acting diaphragm structure, the body is made of stainless steel, corrosion resistant function.It adopts a diaphragm structure and has the characteristics of quick opening and closing, stable performance, convenient use, high reliability and long service life. The water-using solenoid valve has strong anti-pollution ability. It can be used for a long time in rivers, rivers, lakes, oceans and various artificial waters.
ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.
2S200-20:
2S: 2 / 2 Way Direct Drive Solenoid Valve With Stainless Steel Body
200: Orifice Size is 20 mm
20: Port Size is G3/4 Inch
Technical data:
| Model | 2S200-20 |
| Working Medium | Air, Water, Steam |
| Operation | Direct-acting |
| Type | Normal Close |
| Orifice Size | 20 mm |
| Port Size | G 3/4 Inch |
| CV | 7.6 m3/h |
| Operating Pressure | 0~0.7 Mpa |
| Max. Pressure Resistance | 1.0 Mpa |
| Operating Temperature | -5~80℃ |
| Vlotage Range | +-10% |
Special Vlotages and Special Specifications, Please Contant Us.
Deconstruction diagram of 2S200-20
Details
More Details About 2S200-20 Solenoid Valve On Youtube:
Install and use:
1. Please refer to the user manual of the product before installation to see whether it meets your requirements.
2, the pipeline should be cleaned before use, medium is not clean should be installed filter, to prevent impurities interfere with the normal work of the solenoid valve.
3, the solenoid valve is generally one-way work, can not be installed, the arrow on the valve is the direction of the movement of the pipeline fluid, must be consistent.
4, solenoid valve installation of the general body horizontal, vertical upward coil, some products can be installed arbitrarily, but when the conditions allow the best vertical, in order to increase the service life.
5. When the solenoid valve reworks in the frozen place, it shall be heated or heat preservation measures shall be set.
6. After the lead wire of the electromagnetic coil (connector) is connected, it shall confirm whether it is firm or not. The contact point of the
connecting electrical element shall not shake.
7, continuous production to work of the solenoid valve, the best use of bypass, facilitate maintenance, do not affect production.
8. The solenoid valve after a long period of service shall be used only after the condensate is removed; When unassembling and washing, all parts should be put in order and then restored to their original state.
9, there are unknown, please contact us, dedicated to your service.
Welcome to your any question and inquiry!
