Brand Name : BRANDO
Model Number : BAPC210030051
Certification : CE
Place of Origin : Ningbo, China
MOQ : 200
Price : Negotiation
Payment Terms : T/T, PayPal, Western Union
Supply Ability : 300000sets per month
Delivery Time : Negotiation
Packaging Details : Inner Box, Carton, Pallet
Product Name : KIT CP1/4 Pilot
Function : 2/2 Way, NC (Normally Closed)
Seat Connection type : M14 x 1 Thread
Armature Tube Material : Stainless Steel
Plunger Material : Stainless Steel 430FR
Seal Material : NBR (Common), VITON (Option)
Suitable Coil Hole Diameter : φ10.0mm
Suitable Coil Height : 28.7mm
Suitable Orifice Max : 5.6mm
Applicable Valve model : VNP 200/300/400/500/600/700 Series Pulse Valves

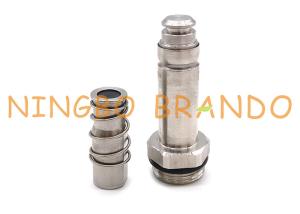

VEM VNP Series Pulse Valve CP1/4 Stainless Steel Solenoid Valve Stem
The celow is KIT CP1/4 pilot (plunger tube and core) for repair and replace Mecair VNP 200, 300, 400, 500, 600, 700 series pulse valves. The related diaphragms repair kits are all supplied.
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
YouTube video of KIT CP1/4 Pilot Group With Core Tube And Plunger:

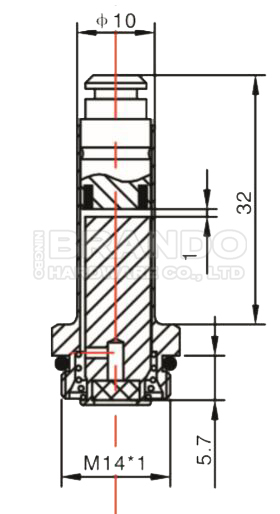

Main dimension of KIT CP1/4 Mecair Type Pulse Valve Repair Kit:

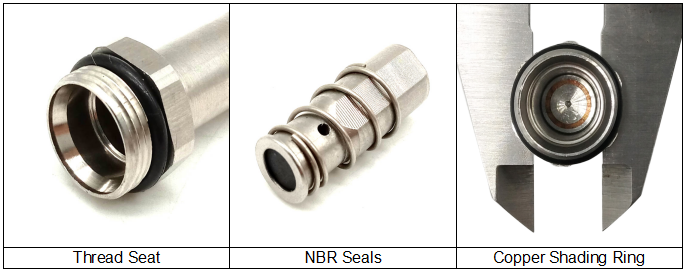

Details display of KIT CP1/4 Mecair Type Diaphragm Valve Repair Kit:
Technical parameters of GPC 10 Pole Assembly Plunger Tube And Core:
Tips: The related diaphragms are all supplied.
Factory production of Solenoid Valve Armature Plunger:
Product Features:
1. Fixed core and movable core (plunger): Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
* Options of brass and stainless steel, grade of H62 or SUS304;
* Wall thickness from range of 0.25~2.5mm, others could be customized;
* Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering.
* Machining from entire solid bar directly is also available.
3. Spring: Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals: Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring: Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
![]() |
