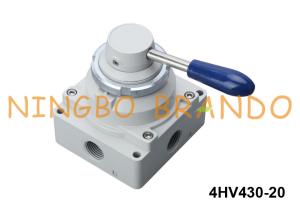

4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''

Brand Name : Brando

Model Number : 4HV430-20

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Individual box, Carton, Pallet

Fluid : Air (to be filtered by 40μm filter element)

Operation : Manual control direct acting type

Port Size : 3/4''

Valve Type : 4 Way 3 Position

Pressure Range : 0 to 1.0 MPa

Max Pressure Resistance : 1.5 MPa

Temperature Range : -20 to +70℃

Body Material : Aluminum Alloy

Contact Now

4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''

The Airtac type 4HV series are reliable hand lever air valves for pneumatic equipment.

Product Features:

1. Very easy and convenient to install,saves more effort.
2. The whole valve is made of aluminum alloy material of good rust and corrosion resistant and very light.
3. Working pressure is 0~1.0Mpa and guaranteed pressure endurance is 1.5Mpa.
4. Very durable and has long service life,more reliable in use.
5. Wide range of working temperature,suitable for more working environmental.


Technical Data of 4HV series Hand Lever Valve:

Model 4HV2□□-06(L) 4HV2□□-08(L) 4HV3□□-08(L) 4HV3□□-10(L) 4HV4□□-15(L) 4HV4□□-20(L)
Fluid Air (to be filtered by 40μm filter element)
Operating Manual control direct acting type
Port Size

1/8''

1/4''

1/4''

3/8''

1/2''

3/4''
Orifice Size (Cv)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

30.0mm²

(Cv=1.67)

33.0mm²

(Cv=1.83)

88.0mm²

(Cv=4.89)

95.0mm²

(Cv=5.27)

Valve Type 4/2 way, 4/3 way
Pressure Range 0 to 1.0 MPa (0 to 145 psi)
Proof Pressure 1.5 MPa (215 psi)
Temperature -20 to +70℃
Body Material Aluminum Alloy
Operating Angle 90° (4/3 Way: 45°)


Ordering Code of 4HV series Hand Lever Valve:

4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''


Dimension of 4HV series Hand Lever Valve:

4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves FRL Unit Pneumatic Cylinders Silencers and Fittings
4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4'' 4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4'' 4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''4HV430-20 Airtac Type 4 Way 3 Position Hand Lever Air Valve 3/4''

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
