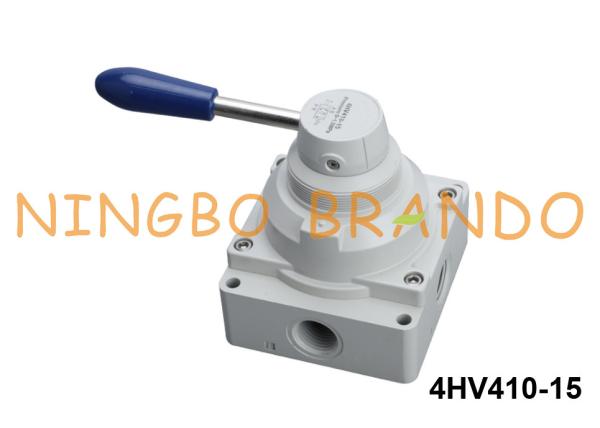

4HV410-15 Airtac Type Rotary Lever Hand Valve 4/2 Way 1/2''
The 4HV410-15 is a manual pneumatic directional valve with a four-way operation & four ports (P = Pressure 1, R = Pressure 2, A = Outlet 1, B = Outlet 2). Four-way, two-position valves can be used to switch two air inputs between two outputs.
Features:
1. Constructed of high quality aluminum material, the valve body is treated with antioxidation coating for long durability.
2. Rotary hand lever with accurate locating is comfortable to grip and easy to operate.
3. Precise casting with high strength material ensures long service life.
4. The inner holes are processed by special workmanship for smaller friction.
5. Widely used to control the flow of various types of fluids such as air, water, steam, mud, liquid metals, etc.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) |
| Operating | Manual control direct acting type |
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' |
| Orifice Size (Cv) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 30.0mm² (Cv=1.67) | 33.0mm² (Cv=1.83) | 88.0mm² (Cv=4.89) | 95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70℃ |
| Body Material | Aluminum Alloy |
| Operating Angle | 90° (4/3 Way: 45°) |
Ordering Code of 4HV series Hand Lever Valve:
Dimension of 4HV series Hand Lever Valve:
