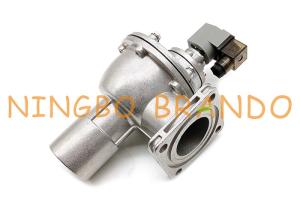

CA45FS 1.5'' Inch Diaphragm Flange Dust Collector Pulse Jet Valve

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CA45FS 1.5'' Inch Diaphragm Flange Dust Collector Pulse Jet Valve

  • 1
  • 2

Brand Name : Brando

Model Number : CA45FS

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Type : Flange Diaphragm Valve

Power : Solenoid

Media : Air

Port Size : 1.5'';1-1/2''Inch

Structure : Diaphragm

Body Material : Aluminum Alloy

Diaphragm Material : NBR(Common), FKM(Available)

Number of Diaphragm : 1

Pressure : 0.1 to 0.8MPa

Temperature : -25 to +80℃

Price : Negotiation

Contact Now

CA45FS 1.5'' Inch Diaphragm Flange Dust Collector Pulse Jet Valve

Technical Data of Goyen Pulse Jet Valve:

Model
CAC25FS
CAC45FS
Working Pressure
0.3~0.8Mpa
Working Temperature
-5~+55℃
Voltage
AC24V, AC110V, AC220V, DC24V
Inlet and Out Pipe Size
1 1/2'' IN, 1'' OUT
2'' IN, 1 1/2'' OUT
Remote or Integral
Integral Pilot
Connection Type
Weldless Flange
Body Material
Aluminium ADC12
Diaphragm Material
NBR(Common), Viton(Available)


Main Dimension:

CA45FS 1.5'' Inch Diaphragm Flange Dust Collector Pulse Jet Valve

CA RCA Series Pulse Jet Valve For Dust Collector System:

Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flanged Valve
1.5'' Inlet
2'' Inlet
CA25FS
CA45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA76MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T

Five tips for extending the life of Goyen type FS series flange connection pulse jet valve for dust collector bag filter:

1. First ensure that the voltage of the dust collector pulse jet valve is stable when in use.
2. The air supply pressure of the dust collector must be too low or the dust source is unstable. Before use, it is necessary to check the wiring line of the dust removal trouble regularly.
3. Replace the defective dust collector pulse jet valve parts in time. In the environment with temperature difference, the dust collector pulse jet valve should be used with the oil water separator.
4. The newly installed dust collector first cleans the solder joint impurities in the air bag.
5. Ensure that the clean air temperature of the valve body entering the dust collector pulse jet valve is not lower than -5 °C.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
