4HV210-08 Airtac Type 4/2 Way Rotary Hand Lever Valve Pneumatic
Airtac type 4HV series rotary hand lever valves are 4 way 4 port valves available in 3 body sizes. They are offered in 2 position type or 3 position all ports blocked type. Ports sizes range from 1/8'' & 1/4'' in the 200 series, to 1/4'' & 3/8'' in the 300 series, and 1/2'' & 3/4'' for the 400 series. A safety locking version is also available and prevents accidental actuation.
Product Features:
1. 4/3-way hand lever valve has three central functions for your choice
2. The direction change turns lightly with good hand feeling and exact orientation
3. Large effective circulating area leads to little pressure loss
Panel and body installation are optional. The panel installation can be attached with installing nut.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) |
| Operating | Manual control direct acting type |
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' |
| Orifice Size (Cv) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 30.0mm² (Cv=1.67) | 33.0mm² (Cv=1.83) | 88.0mm² (Cv=4.89) | 95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70℃ |
| Body Material | Aluminum Alloy |
| Operating Angle | 90° (4/3 Way: 45°) |
Ordering Code of 4HV series Hand Lever Valve:

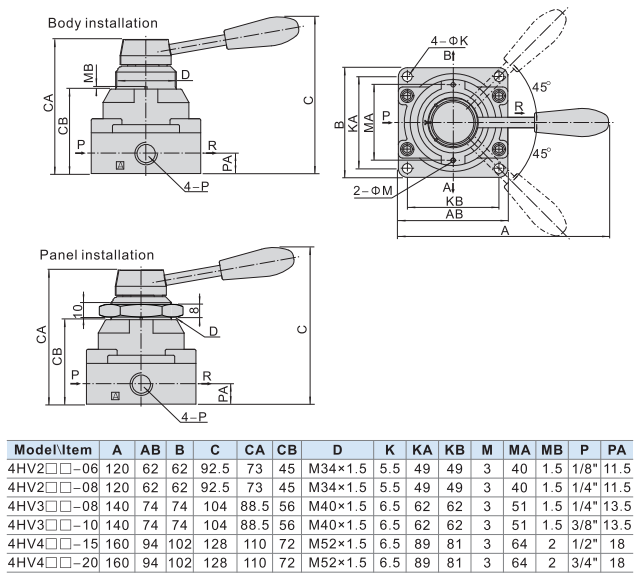

Dimension of 4HV series Hand Lever Valve:
