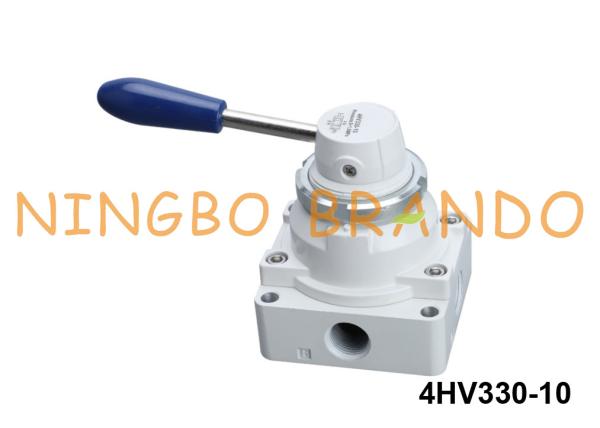

4HV330-10 Airtac Type 4/3-Way Hand Lever Valve With Closed Mid-Position
Description:
1. 4HV series hand lever valve, rotary style pneumatic directional control valve is hand operated.
2. Available in 4/2 way or 4/3 way. Choose from multiple port sizes and thread types.
3. 4/3-way hand lever valve has three central functions for your choice
4. The direction change turns lightly with good hand feeling and exact orientation
5. Large effective circulating area leads to lttle pressure loss
6. Panel and body installation are optional. The panel installation can be attached with installing nut.
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) |
| Operating | Manual control direct acting type |
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' |
| Orifice Size (Cv) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 30.0mm² (Cv=1.67) | 33.0mm² (Cv=1.83) | 88.0mm² (Cv=4.89) | 95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70℃ |
| Body Material | Aluminum Alloy |
| Operating Angle | 90° (4/3 Way: 45°) |
Ordering Code of 4HV series Hand Lever Valve:
