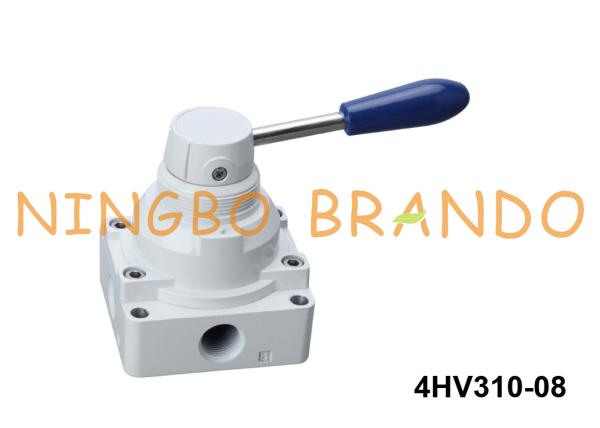

4HV310-08 Airtac Type Hand Lever Operated Pneumatic Valve 4/2 Way
Overview for 4HV series Hand Lever Valves:
1. 4HV Hand Air Valve Four-way three-position hand-switch valve has three central functions to choose from.
2. The reversing rotation is light, the feel is good, and the positioning is accurate.
3. The effective circulation area is large and the pressure loss is small.
4. It adopts integral slot slide valve disc structure, which has faster response speed and lighter operation. The machining center is used to process the valve body, and the machining accuracy is higher.
5. Hand Operated Valve adopts the oxidation and then painting process, double protect the valve body to adapt to the harsh environment.
6. 4HV Hand Air Valve is a three-position four-way valve, the valve body is compact in structure; beautiful in appearance; comfortable in hand; long service life.
Technical Parameters:
1. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4''
2. Operating Pressure: 0 to 1.0 MPa
3. Working Environment Temperature: -20 to +70°C
4. Material: Aluminium Alloy, Nylon
Technical Data of 4HV series Hand Lever Valve:
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
| Fluid | Air (to be filtered by 40μm filter element) |
| Operating | Manual control direct acting type |
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' |
| Orifice Size (Cv) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 30.0mm² (Cv=1.67) | 33.0mm² (Cv=1.83) | 88.0mm² (Cv=4.89) | 95.0mm² (Cv=5.27) |
| Valve Type | 4/2 way, 4/3 way |
| Pressure Range | 0 to 1.0 MPa (0 to 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Temperature | -20 to +70℃ |
| Body Material | Aluminum Alloy |
| Operating Angle | 90° (4/3 Way: 45°) |
Ordering Code of 4HV series Hand Lever Valve:
Dimension of 4HV series Hand Lever Valve:
