CA45T Right Angle 1-1/2" Inch Aluminum Alloy Body Pulse Valve
T Series Threaded Right Angle with aluminum alloy bdoy is one kind of Goyen type Electromagnetic Pulse Valves. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Used Widely in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
The coil in the solenoid valve body is input with a positive pulse signal through a wire, and the working magnetic flux generated by the coil causes the moving core to attract and open the valve. When the positive pulse signal input is stopped, the moving core is released, and the moving core returns to the initial state under the action of spring force. The valve is closed. In addition, there is a self-retaining type. It can be maintained even after the positive pulse is stopped or the power is cut off. Input is required The negative pulse signal can be reset; the working principle of the pulse solenoid valve is to use the pulse of the electrical appliance to transform into mechanical pulsation, so that the powerful energy of the pulsating gas becomes momentum, which is released in a short time to generate a huge impulse, and the PLC is used to control its pulse The interval should be determined according to the rated gas pressure recovery time l. Introduction to pulse solenoid valve: through the wire to input the pulse signal into the solenoid valve body coil, the pulse valve is controlled by the output signal of the pulse injection controller, relying on the pressure change of the two air chambers before and after the valve, the rubber diaphragm is flexed and deformed to realize the pulse The opening and closing of the valve. The diameter of the rubber diaphragm determines the stroke size of the rubber diaphragm and the speed of opening and closing. The larger the diameter of the diaphragm, the larger the stroke and the better the blowing performance.
Technical Data of CA45T double diaphrgam pulse valve:
Model No. | CA45T |
Number of Diaphragm | 2 |
Connection Type | Threaded |
Port Size | G1-1/2 Inch |
Working Pressure | 0.3~0.8Mpa |
Medium | Air |
Action Type | Pilot Operated |
Temperature Range | -5℃ - 55℃ |
Relative humidity | ≤85% |
Voltage | DC24V, AC24V, AC110V, AC220V |
Demension of CA45T Dust Collector Solenoid Pulse Valve:

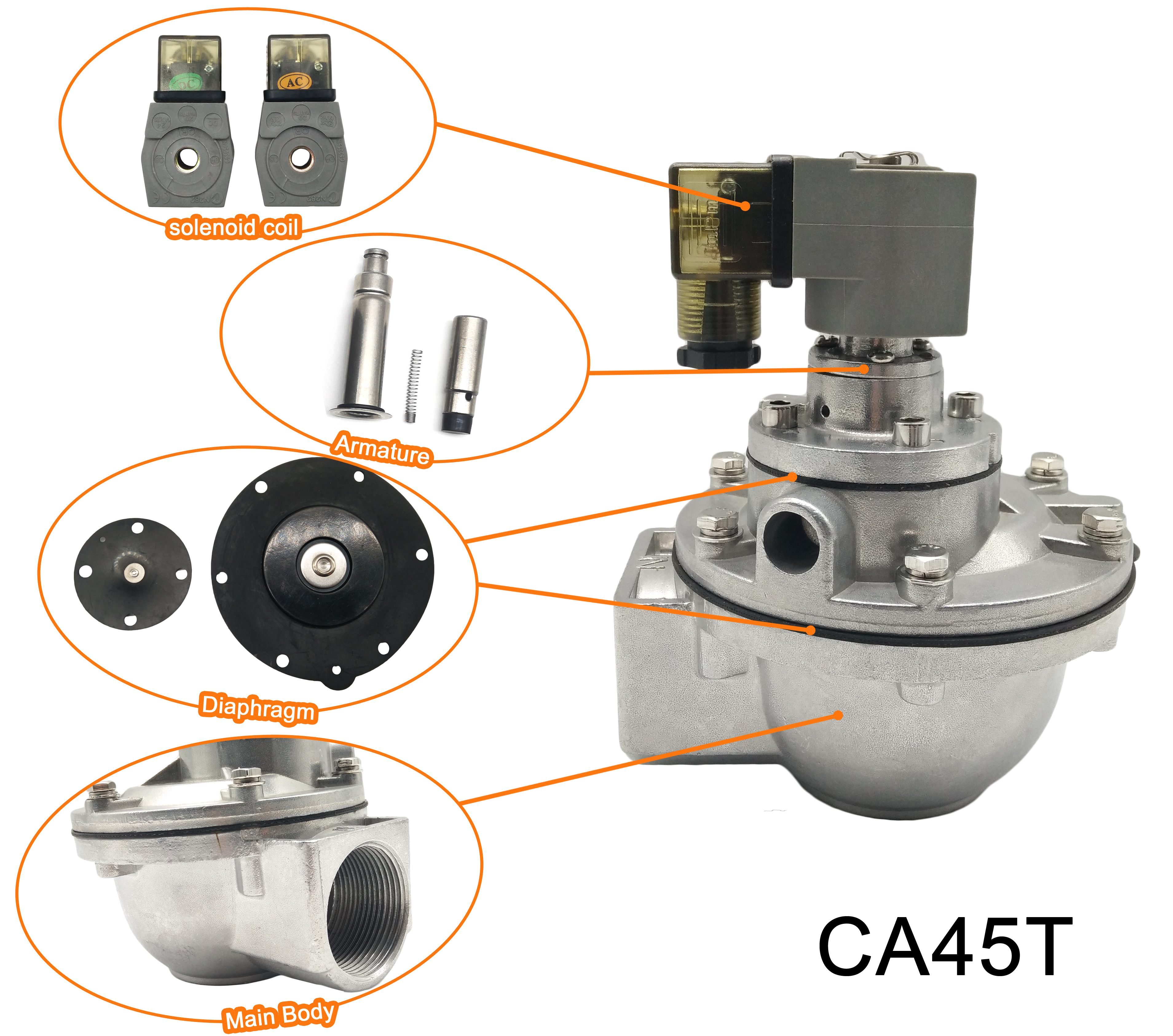

Deconstruction of CA45T :
Part Name | Material |
Main Body | Diecasting Aluminum Alloy |
Diaphragm Material | NBR (common , all available ) |
Seal Material | NBR (common , all available ) |
Armature (Spring ) | Stainless Steel |
Solenoid Coil | Copper |
Maintenance Kits of CA45T:
Nitrile | Viton | low temp –60°C (–76°F) MIN | |
main and secondary diaphragms | K4502 | K4503 | K4522 |
Pilot repair kit | K0380 | K0384 | NA |
How to choose a pulse valve correctly:
1. According of Port size ,choose the match pulse valve . Goyen Type T series also have G1/2'', G3/4'', G1'', G1-1/4'', G1-1/2'', G2'', G2-1/2'', G3'' Port size diaphragm valve.
2. According of power supply , Choose AC or DC solenoid pulse valve. AC220V and DC24V are preferred for voltage specifications.
3. Waterproof solenoid valve should be selected in the environment with high relative humidity and water drops and rain.
4. For use in corrosive or explosive environments, it is preferred to choose corrosion resistance according to safety requirements.
5. If the environmental space is limited, please use a multi-function solenoid valve, because it bypasses the bypass and three manual valves and is convenient for online maintenance.
6.The rated current and power consumption should be selected according to the power supply capacity. It should be noted that the VA value is higher at the time of AC starting, and the indirect pilot solenoid valve should be preferentially selected when the capacity is insufficient.
