TSV86522M Shako Type Pneumatic Hand Control Valve 5/2 Way
BRANDO has accumulated more than 10 years experience in the design and manufacture of mechanical control valves. We always committed to develop products that meet customer's demand. Now we have a series of mechanical valves, such as 3 way mechanical valve, 4 way mechanical valve, 5/2 way hand control valves, etc. We specially invest and put more efforts to develop new products and equipment meeting quality of ISO9001 procedures and the world standard and internationalized specification, identically with products of all famous brands.
Technical Data of TSV8652 series Hand Control Valve:
| Model | TSV8652(R)-01M(S) | TSV8652(R)-02M(S) | TSV8652(R)-03M(S) | TSV8652(R)-04M(S) |
| Port Size | In=Out= Exhaust=1/8'' | In=Out=1/4'', Exhaust=1/8'' | In=Out= Exhaust=3/8'' | In=Out= Exhaust=1/2'' |
| Body Material | Aluminum Alloy |
| Fluid | Compressed Air |
| Sectional Area | 14mm² | 18mm² | 35mm² | 38mm² |
| Operating Pressure Range | 0 to 9 kgf/cm² |
| Proof Pressure | 10 kgf/cm² |
| Ambient Temperature | -10 to +60℃ |

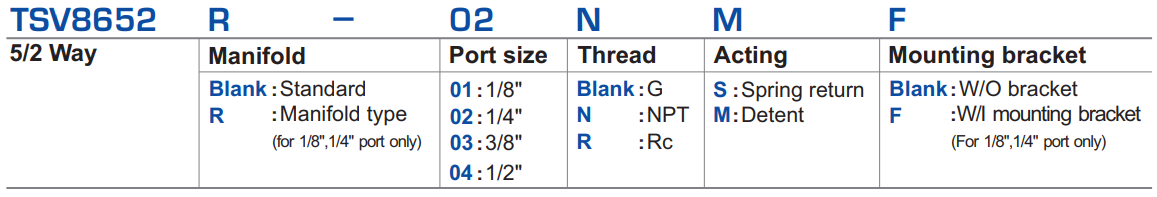

Ordering Code of TSV8652 series Hand Control Valve:
Dimension of TSV8652-02 Hand Control Valve:

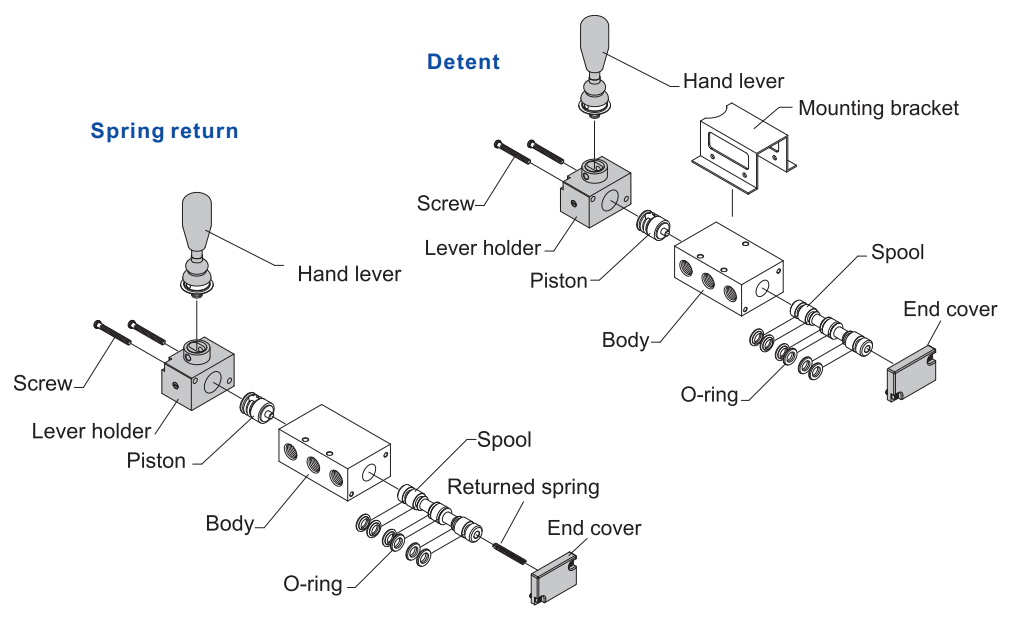

Explosion of TSV8652 series Hand Control Valve:
