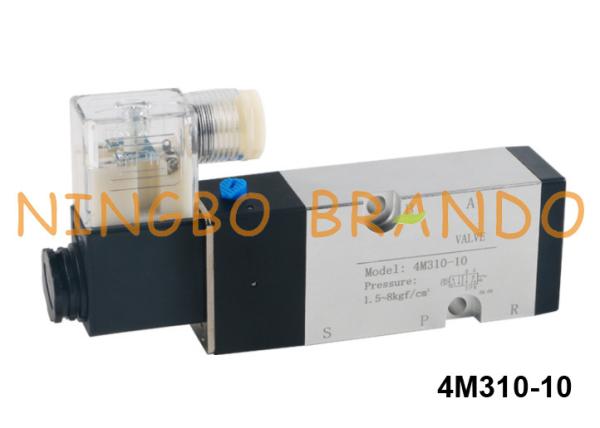

4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way

Brand Name : Brando

Model Number : 4M310-10

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Individual box, Carton, Pallet

Valve Type : 5 Way 2 Position

Port Size : In=3/8'', Out=1/4''

Pressure Range : 0.15 to 0.8 MPa

Max Pressure Resistance : 1.2 MPa

Body Material : Aluminum Alloy

Max Frequency : 4 Cycle/ Second

Acting : Internal Pilot

Temperature Range : -20 to +70℃

Fluid : Air (to be filtered by 40μm filter element)

Contact Now

4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way

Product Features:
1. Internally piloted structure.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to faciliate installation and debugging.
8. Several standard voltage grades are optional.


Technical Data of 4M Series Namur Solenoid Valve:

Model No

4M110-M5

4M120-M5

4M110-06

4M120-06

4M210-06

4M220-06

4M210-08

4M220-08

4M310-08

4M320-08

4M310-10

4M320-10
Fluid Air (to be filtered by 40 μm filter element)
Port Size In=Out=M5 In=Out=1/8'' In=Out=1/8'' In=1/4'', Out=1/8'' In=Out=1/4'' In=3/8'', Out=1/4''
Orifice Size

5.5mm²

(Cv=0.31)

12.0mm²

(Cv=0.67)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

25.0mm²

(Cv=1.40)

30.0mm²

(Cv=1.67)
Valve Type 5 Way 2 Position
Operating Pressure 0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure 1.5MPa (215PSI)
Temperature (℃) -20 to +70
Body Material Aluminum Alloy
Max. Frequency 5 Cycle / Second 4 Cycle / Second
Coil Voltages 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection Class IP65
Activating Time 0.05 second and below


Dimension of 4A310-10 Namur Solenoid Valve:

4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Air Pilot Valve FRL Unit Pneumatic Cylinders Silencers and Fittings
4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way 4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way 4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way 4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way4M310-10 Airtac Type Namur Type Solenoid Valve 5/2 Way
