4M110-06 Airtac Type 5/2 Way Namur Mount Solenoid Valve
Namur valve are electric valves for use with liquids or gases. Valves are controlled by solenoid currents: in the case of two-port valves, the flow is switched on or off; In the case of a three-port valve, the output current is shifted between the two output ports. This device is designed for direct connection to any location on the NAMUR interface. The NAMUR valve has anodized aluminum body, stainless steel pipe, and brass parts. Spring back allows unsafe operation in the event of a power outage, and the exhaust check protects the valve function while in outdoor use. Multiple namur valve can be placed together on a manifold valve.
Technical Data of 4M Series Namur Solenoid Valve:
| Model No | 4M110-M5 4M120-M5 | 4M110-06 4M120-06 | 4M210-06 4M220-06 | 4M210-08 4M220-08 | 4M310-08 4M320-08 | 4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) |
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=1/4'', Out=1/8'' | In=Out=1/4'' | In=3/8'', Out=1/4'' |
| Orifice Size | 5.5mm² (Cv=0.31) | 12.0mm² (Cv=0.67) | 14.0mm² (Cv=0.78) | 16.0mm² (Cv=0.89) | 25.0mm² (Cv=1.40) | 30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position |
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) |
| Proof Pressure | 1.5MPa (215PSI) |
| Temperature (℃) | -20 to +70 |
| Body Material | Aluminum Alloy |
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second |
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Coil Protection Class | IP65 |
| Activating Time | 0.05 second and below |

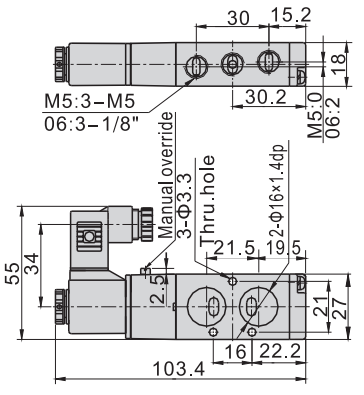

Dimension of 4A110-06 Namur Solenoid Valve:
