3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way

Brand Name : Brando

Model Number : 3A220-06

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Individual box, Carton, Pallet

Valve Type : 3 Way 2 Position

Port Size : In=Out=1/8''

Pressure Range : 0.15 to 0.8 MPa

Max Pressure Resistance : 1.5 MPa

Body Material : Aluminum Alloy

Max Frequency : 5 Cycle/ Second

Acting : Exterior Control

Temperature Range : -20 to +70℃

Fluid : Air (to be filtered by 40μm filter element)

Contact Now

3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way

In the pneumatic world, valves are the equivalent of relays controlling the flow of electricity in automation systems. Instead of distributing electric power to motors, drives and other devices, pneumatic valves distribute air to cylinders, actuators and nozzles.

Pneumatic valves, also called directional control valves, are activated in a variety of ways including manually, solenoid operated and air piloted. In their simplest form, 2-way and 3-way valves can be normally open (NO) or normally closed (NC), terms that refer to their normal states without power applied. Another very common valve is a 4-way valve which switches supply and exhaust between two outlet ports.


Technical Data of 3A200 Series Pneumatic Air Pilot Valve:

Model
3A210-06
3A220-06
3A210-08
3A220-08
Fluid
Air (to be filtered by 40μm filter element)
Acting
exterior control
Port Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
3A210-08, 3A220-08: 17.0mm² (Cv=1.0)
Valve Type
3 way 2 position
Operating Pressure
0.15 to 0.8 MPa (21 to 114 psi)
Proof Presure
1.2 MPa (175psi)
Temperature
-20 to +70℃
Body Material
Aluminum Alloy
Max Frequency
5 cycle / sec

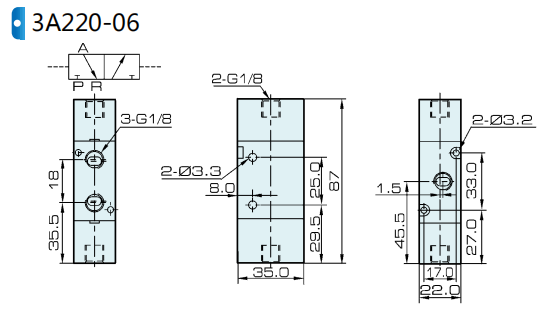

Dimension of 3A220-06 Pneumatic Air Pilot Valve:

3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves FRL Unit Pneumatic Cylinders Silencers and Fittings
3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way 3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way 3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way3A220-06 Airtac Type Pneumatic Double Air Pilot Valve 3 Way
