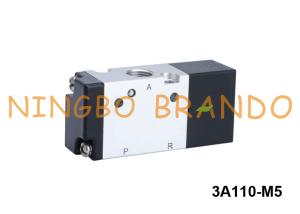

3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way

Brand Name : Brando

Model Number : 3A110-M5

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 200000 pcs per month

Delivery Time : Negotiation

Packaging Details : Individual box, Carton, Pallet

Valve Type : 3 Way 2 Position

Port Size : M5

Pressure Range : 0.15 to 0.8 MPa

Max Pressure Resistance : 1.5 MPa

Body Material : Aluminum Alloy

Max Frequency : 5 Cycle/ Second

Acting : Exterior Control

Temperature Range : -20 to +70℃

Fluid : Air (to be filtered by 40μm filter element)

Contact Now

3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way

In the pneumatic world, valves are the equivalent of relays controlling the flow of electricity in automation systems. Instead of distributing electric power to motors, drives and other devices, pneumatic valves distribute air to cylinders, actuators and nozzles.

Pneumatic valves, also called directional control valves, are activated in a variety of ways including manually, solenoid operated and air piloted. In their simplest form, 2-way and 3-way valves can be normally open (NO) or normally closed (NC), terms that refer to their normal states without power applied. Another very common valve is a 4-way valve which switches supply and exhaust between two outlet ports.


Technical Data of 3A100 Series Pneumatic Air Pilot Valve:

Model
3A110-M5
3A120-M5
3A110-06
3A120-06
Fluid
Air (to be filtered by 40μm filter element)
Acting
exterior control
Port Size
M5
1/8''
Orifice Size
3A110-06, 3A120-06: 10.2mm² (Cv=0.6)
Valve Type
3 way 2 position
Operating Pressure
0.15 to 0.8 MPa (21 to 114 psi)
Proof Presure
1.2 MPa (175psi)
Temperature
-20 to +70℃
Body Material
Aluminum Alloy
Max Frequency
5 cycle / sec

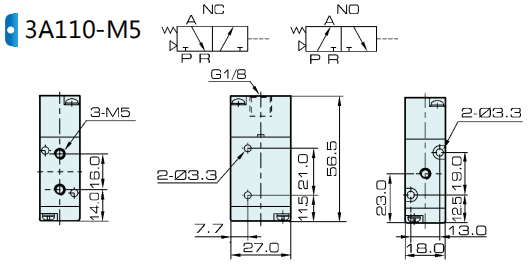

Dimension of 3A110-M5 Pneumatic Air Pilot Valve:

3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves FRL Unit Pneumatic Cylinders Silencers and Fittings
3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way 3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way 3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way3A110-M5 Airtac Type Air Pilot Pneumatic Valve 3/2 Way
