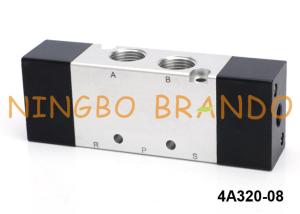

4A320-08 Airtac Type 5/2 Way Double Pilot Pneumatic Valve 1/4''
BRANDO air pilot valves are available in 3 way and 5 way. Standard port sizes are within range from 1/8 in. to 1/2 in, and custom size can be made to order. They also have the custom made valve body available in aluminum, brass, stainless steel and engineering plastic. Reliable quality sealing is used to ensure the longer durability and hence significantly increases the life of the valve body. BRANDO air pilot valves allow working pressure within 22 to 116 psi, maximum test pressure to 174 psi, and working temperature within 41 to 122 Fahrenheit, so that they can be used in automotive, packaging, pharmaceutical, oil and gas, machine tools and many other industries.
Technical Data of 4A300 Series Pneumatic Air Pilot Valve:
| | | | 4A330C-08 4A330E-08 4A330P-08 | | | 4A330C-10 4A330E-10 4A330P-10 |
| | Air (to be filtered by 40 μm filter element) |
| | |
| | | in=out=3/8'', exhaust=1/4'' |
| Orifice Size | 4A310-10, 4A320-10: 28.0mm² (Cv=1.65) 4A330C-10: 21.3mm² (Cv=1.25) |
| Vlave Type | | 5 way 3 postion | | |
| Operating Pressure | 0.15 to 0.8 MPa (21 to 114 psi) |
| Proof Pressure | |
| Temperature | |
| Body Material | |
| Max Frequency | | | | |

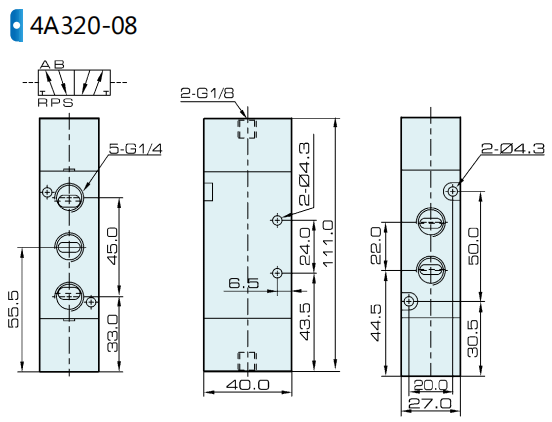

Dimension of 4A320-08 Pneumatic Air Pilot Valve:
