VFA3530-02 SMC Type Double Air Pilot Directional Valve 5 Port
BRANDO air pilot valves are available in 3 way and 5 way. Standard port sizes are within range from 1/8 in. to 1/2 in, and custom size can be made to order. They also have the custom made valve body available in aluminum, brass, stainless steel and engineering plastic. Reliable quality sealing is used to ensure the longer durability and hence significantly increases the life of the valve body. BRANDO air pilot valves allow working pressure within 22 to 116 psi, maximum test pressure to 174 psi, and working temperature within 41 to 122 Fahrenheit, so that they can be used in automotive, packaging, pharmaceutical, oil and gas, machine tools and many other industries.
Specifications of VFA Series Air Pilot Valves:
| Fluid | Air |
| Operating Pressure Range | 2 position single | 0.15 to 0.9 MPa |
| 2 position double | 0.1 to 0.9 MPa |
| 3 position | 0.15 to 0.9 MPa |
| Pilot Pressure Range | 2 position single | (0.4xP+0.1) to 0.9 MPa: Operating pressure range |
| 2 position double | 0.1 to 0.9 MPa |
| 3 position | 0.15 to 0.9 MPa |
| Ambient and Fluid Temperature | -10 to +60℃ (No freezing) |
| Lubrication | Not required |
| Mounting Orientation | Free |
| Impact/Vibration Resistance | 300/50 (m/s²) |
Ordering Code of VFA Series Air Pilot Valves:

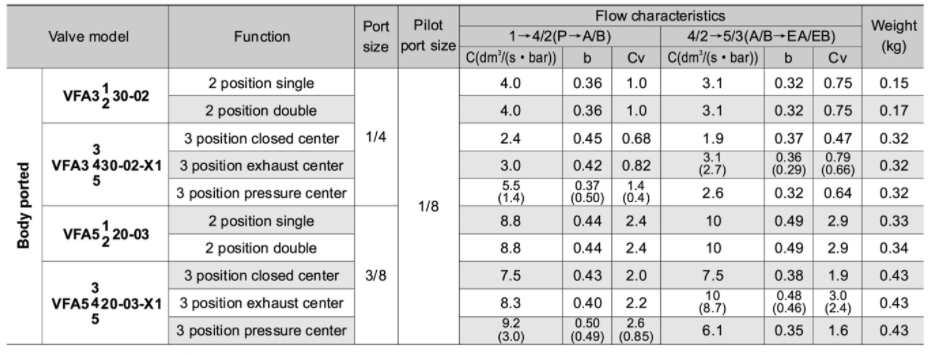

Flow Characteristics of VFA Series Air Pilot Valves:
Dimension of VFA Series Air Pilot Valves:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
| | | |

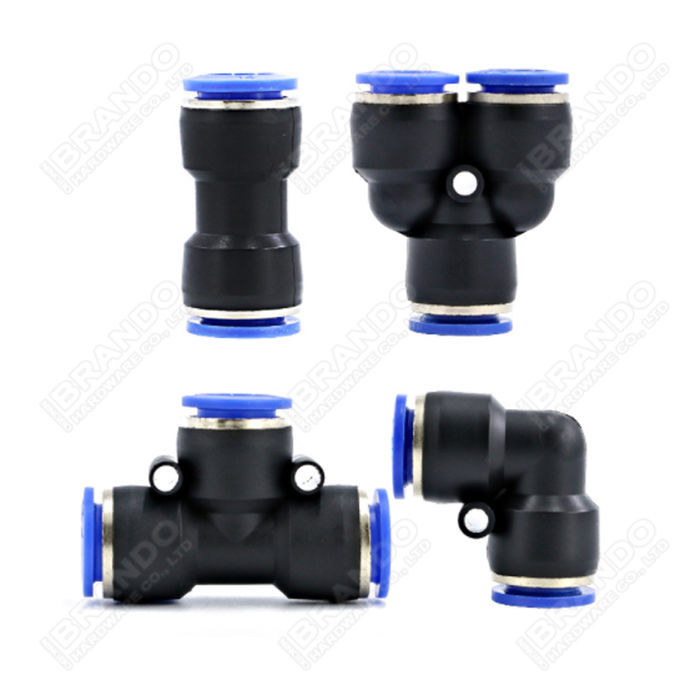

| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
| |  |   |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
