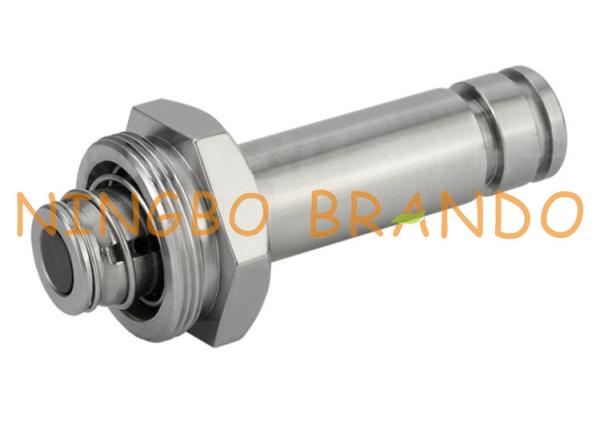

2'' SCG353A050 ASCO Pulse Valve Repair Kit Solenoid Armature
This is solenoid valve stem for asco 1.5'' SCG353A047, 2'' SCG353A050 and 2.5'' SCG353A051 pulse valve repair kit. The related pulse jet valves, solenoid coils and diaphragms are also supply. Welcome to your any inquiry and problem.
Brando is a solenoid valve amrature assembly professional manufacturer and exporter in Ningbo, China. Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.
Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.
* According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
* According to tube material: Brass, Stainless Steel
* According to function: 2/2 way NC, 2/2 way NO, 3/2 way NC, 3/2 way NO.
* According to connection: thread, flange
ASCO Pulse Valve Armature:
| Picture | Dimension | Brando Model | BAPC214041405 |
 |  | Reference Number | |
| Plunger Tube Material | |
| Seal Material | |
| Voltage | |
| Function | |
| Fitted Coil | |
| Fitted Valve | 1 1/2'' SCG353A047, 2'' SCG353A050, 2 1/2'' SCG353A051 |
| Picture | Dimesion | Brando Model | |
 |  | Reference Number | |
| Voltage | 24VDC, 48VDC, 24VAC, 48VAC, 115VAC, 230VAC |
| Fitted Armature Plunger | |
| Fitted Valve | 1 1/2'' SCG353A047, 2'' SCG353A050, 2 1/2'' SCG353A051 |
| Picture | Dimesion | Brando Model | |
 |  | Reference Number | |
| Plunger Tube Material | |
| Seal Material | |
| Voltage | |
| Function | |
| Fitted Coil | |
| Fitted Valve | 3/4'' SCG353A043, 1'' SCG353A044 |
| Picture | Dimesion | Brando Model | |
 |  | Reference Number | |
| Voltage | 24VDC, 48VDC, 24VAC, 48VAC, 115VAC, 230VAC |
| Fitted Armature Plunger | |
| Fitted Valve | 3/4'' SCG353A043, 1'' SCG353A044 |
Brando Solenoid Valve Armature Production Video:
Related product supply:
* Solenoid Valve Coil:
* Diaphragm Repair Kit:
* Pulse Jet Valve:
FAQ:
How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.
What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.
How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
