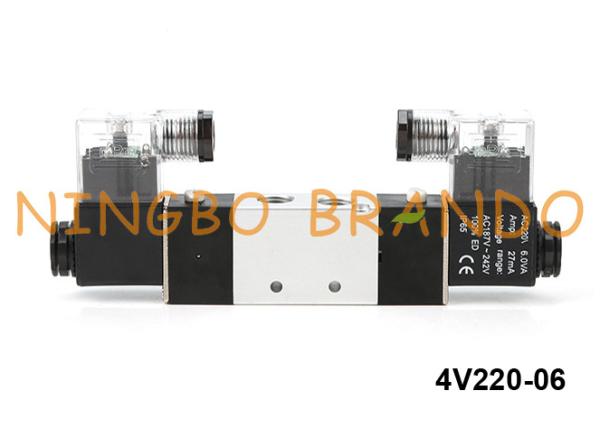

4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC
5/2 way pneumatic solenoid valves are used for controlling double acting pneumatic cylinders. They have 2 output ports, commonly designated A & B or 2 & 4. They have one inlet port, designated P or 1, and two exhaust ports, designated R & S or 3 & 5.
In one position, inlet port P or 1 is connected to output port A or 2, while the port B or 4 is exhausted through exhaust port S or 4. This means the pneumatic cylinder is extended.
In the other position of the valve, P or 1 is connected to port B or 4, and port A or 2 is connected to the exhaust port R or 3. This means the cylinder is retracted.
The valve is shifted from one position to the other by various means; for example, a couple of solenoids or pilot connections. Many a time, one default position is achieved by means of a spring and the other through a solenoids or a pilot connection.
Data of 4V200 Series Pneumatic Solenoid Valves:
| Model | | 4V230C-06 4V230E-06 4V230P-06 | | 4V230C-08 4V230E-08 4V230P-08 |
| Fluid | Air (to be filtered by 40 μ m filter element) |
| Acting | |
| Port Size | | In=Out=1/4'', Exhaust=1/8'' |
| Orifice Size | | | | |
| Valve Type | | | | |
| Working Pressure | |
| Max. Pressure Resistance | |
| Temperature | |
| Material of Body | |
| Max. frequency | |
Dimension of 4V220-06 Pneumatic Solenoid Valve:
Product Video of 4V220-06 Pneumatic Solenoid Valve:
Production Video of Pneumatic Solenoid Valve:
