Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal

Brand Name : BRANDO

Model Number : RCA76T

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 165000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box,Carton,Pallet

Port Size : 3''

Series : T

Pipe Connection : Threaded

Valve Structure : Right Angle Type

Body Material : Aluminum Alloy

Diaphragm Material : NBR, FKM

Workinｇ Pressure Range : 0.3 to 0.8 MPa

Contact Now

3'' RCA76T Goyen Type T Series Pulse Jet Valve For Dust Removal

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Brando supply different pulse jet valve structure:

* Right Angle Type
* Manifold Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type

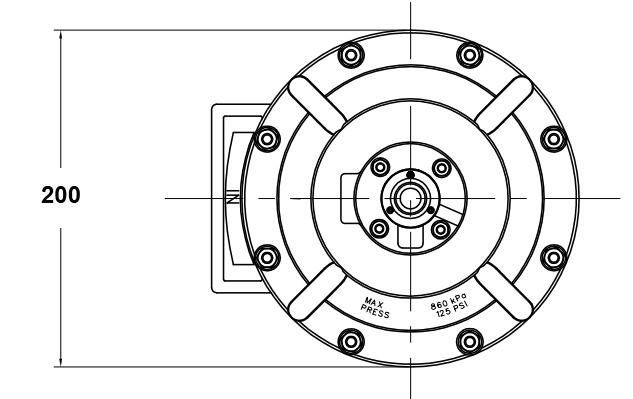

Dimension of RCA76T Pulse Jet Valve:

Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust RemovalGoyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal

Technical Data of T Series Pulse Jet Valves:

Model NO
RCA15T
RCA20T
RCA25T
RCA35T
RC45T
RCA50T
RCA62T
RCA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Pilot Size
1/8'', 1/4''
Working pressure
0.3 to 0.8MPa
Fluids
Air
Diaphragm Material
NBR or FKM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet)

Ordering Code of T Series Pulse Jet Valves:

Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal

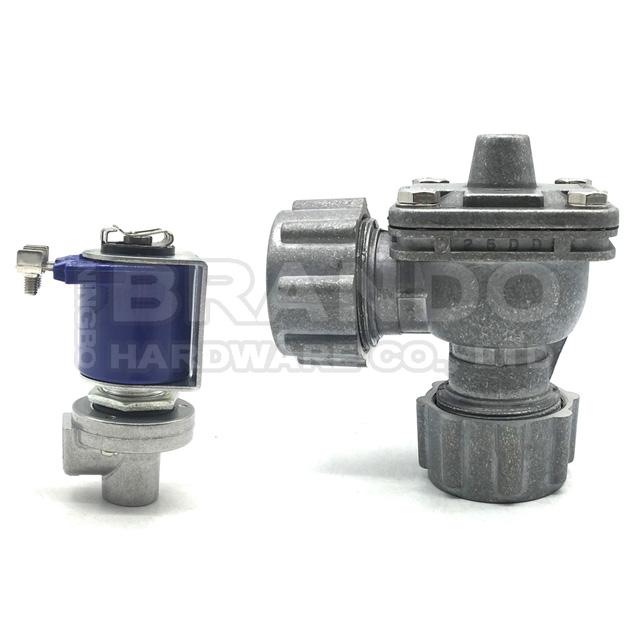

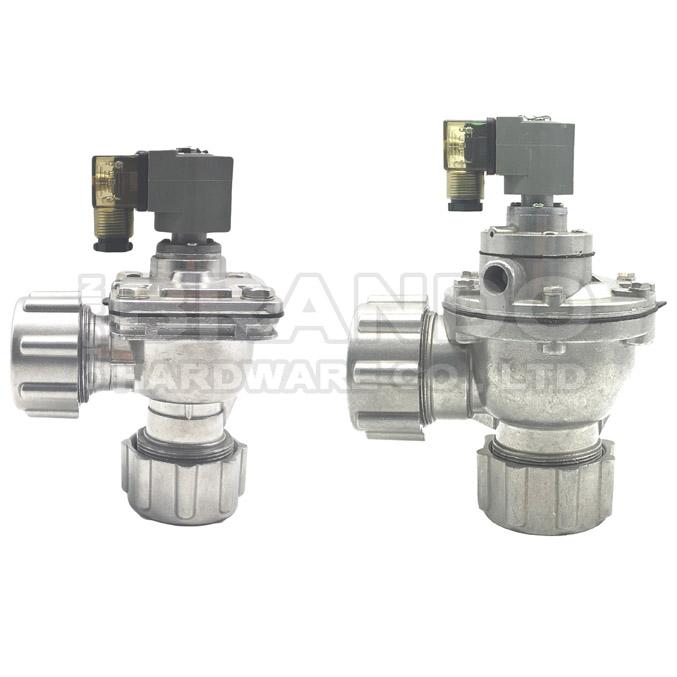

More Goyen Type Pulse Jet Valves for you to choose:

Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal
T Series DD Series MM Series FS Series
Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal Goyen Type T Series Pulse Jet Valve 3'' RCA76T For Dust Removal
RCA Series Solenoid Coils Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
