CA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

Brand Name : BRANDO

Model Number : CA76T

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 165000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box,Carton,Pallet

Port Size : 3''

Coil Voltage : 24VDC, 220VAC

Workinｇ Pressure Range : 0.3 to 0.8MPa

Threaded Pulse Jet Valve : CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T

Dresser Nut Pulse Jet Valve : CA25DD, RCA25DD, CA45DD

Immersion Pulse Jet Valve : CA50MM, CA62MM, CA76MM, CA89MM

Flanged Pulse Jet Valve : CAC25FS, CAC45FS

Remote Pilot Pulse Jet Valve : RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T

Application : Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters

Contact Now

CA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

This is CA76T Goyen Type Right Angle Pulse Jet Valve; Reference No: CA76T000, CA76T001, CA76T010, CA76T000-300, CA76T001-300, CA76T010-300, CA76T000-305, CA76T001-305, CA76T010-305, CA76T000-331, CA76T001-331, CA76T010-331. Threaded port connection; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Technical data of Right Angle Pulse Jet Valves:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Nonimal size
φ15
φ20
φ25
φ35
φ45
φ50
φ62
φ76
Port Size
G1/2''
G3/4''
G1''
G1 1/4''
G1 1/2''
G2''
G2 1/2''
G3''
Working pressure
0.3 to 0.8MPa
Temp. range
-5℃ to 55℃
Relative humidity
≤85%
Working
medium
Compressed clean air
Voltage
24VDC, 220VAC

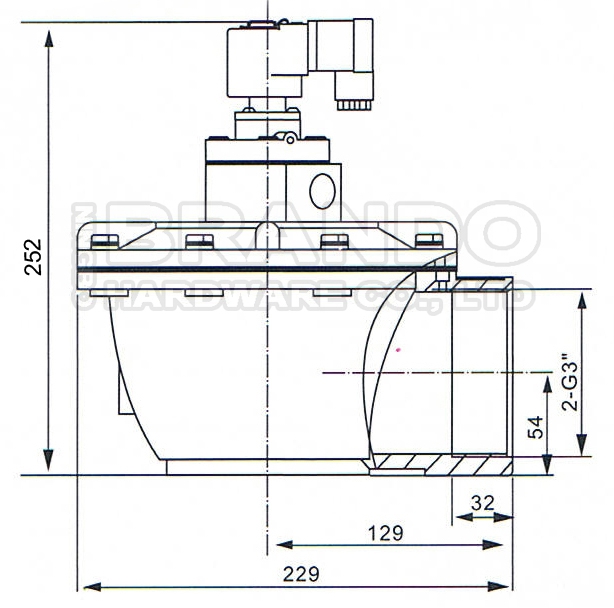

Dimension of CA76T Goyen Type Pulse Jet Valve:

CA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

Video of CA76T Goyen Type Pulse Jet Valve:

Detail images of Goyen Type Pulse Jet Valves:

CA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

More Goyen Type Pulse Valve For You to Choose:


CA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

Threaded Type Immersion Type Dresser Nut Type Flanged Type

CA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm ValveCA76T 3 Inch Right Angle Dust Collector System Diaphragm Valve

RCA Series Solenoid Coil Armature Assembly Pulse Controller
