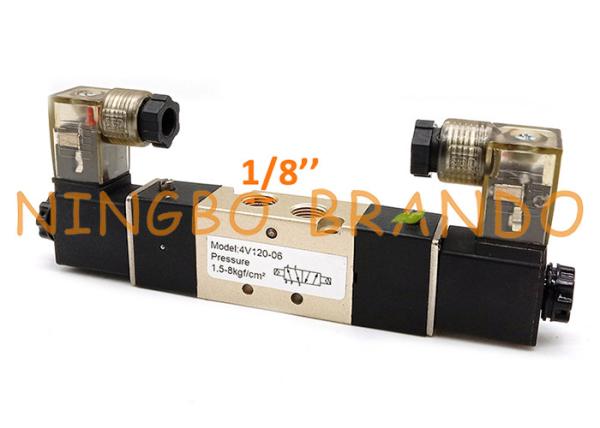

1/8'' 4V120-06 5/2 Way Air Control Double Solenoid Pneumatic Valve

1/8'' 4V120-06 5/2 Way Air Control Double Solenoid Pneumatic Valve

Two-position five-way solenoid valve
1. The piston rod must be flexible. Manual test, you should feel relaxed when pressing the piston rod. After releasing the hand, the piston
The rod can automatically return to the original position before being pressed under the action of the spring force. If it cannot be driven automatically, please remove the dust inside the valve body and the piston rod and treat it with high-quality lubricating oil to ensure the free movement of the piston rod.
2. Pilot valve The piston must be able to move easily and freely like the piston rod, and the treatment method is the same as above.
3. The air path for the pilot valve to work normally must be unobstructed.
The air path is unobstructed.
4. When the electromagnetic coil is energized under normal conditions, the closing part should be lifted and there will be a sound of pulling in. If abnormal check line
Whether the ring is burnt and whether there is debris inside the closing part, handle it by measuring and cleaning the debris.ete

Technical Data:

Dimension Diagram:

4V120(Grommet)

4V120(Terminal)

Product Features:
1. High-strength aluminum alloy botton cover
2. One-time machining of valve lever by CNC, high precision
3. Valve body was machining by CNC, clean and beautifull
4. spacial processing of inner hole, small friction resistance and low starting pressure
5. High-precision pilot accessories, excitation time of only 0.05 seconds
6. imported seals, the life up to 10 millions of times
7. Aluminum alloy piston is not easy to damage
8. Embedded copper nut not easy to loose
9. with a manual device for installaton and testing
10. Copper coil has avariety of voltage available for selection

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
