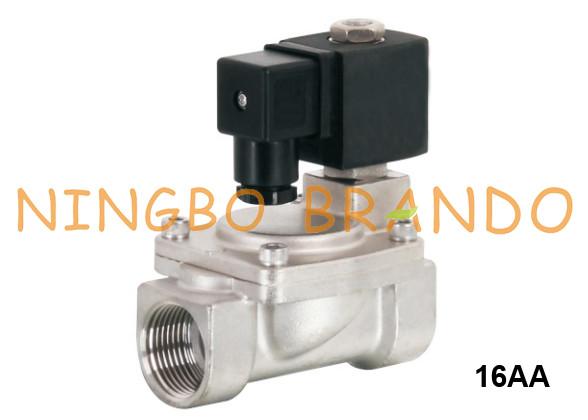

PTFE Diaphragm Stainless Steel Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 24V 220V

Name: PTFE Diaphragm Stainless Steel Solenoid Valve 38 12 34 1 24V 220V
Brand: Brando
Price: 1 USD

Brand Name : Brando

Model Number : 16AA-S

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Port Size : 3/8'', 1/2'', 3/4'', 1''

Orifice Size : 12mm, 15mm, 20mm, 25mm

Operation Mode : 2 Way, Normally Closed

Operation : Diaphragm Pilot Operated

Body Material : Stainless Steel

Working Medium : Hot Water, Steam, Ammonia, Air, Oil, etc

Pressure Range : 0.03 to 1.6 MPa

Seal Material : PTFE

Temperature Range : -30 to +200℃

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

PTFE Diaphragm Stainless Steel Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 24V 220V

Product Features of Stainless Steel Solenoid Valve:

1. Working Medium: Air, Hot Water, Steam, Ammonia, Oil etc.
2. Working Pressure Range: 0.03 to 1.6 MPa (See the parameter table below for details)
3. Medium Temperature Range: PTFE (-30 to +200℃)
4. Port Size: 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 12mm, 15mm, 20mm, 25mm
6. Body Material: Brass, Stainless Steel
7. Diaphragm Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Diaphragm Pilot Operated
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Stainless Steel Solenoid Valve:

Model	Port Size	Orifice Size	Cv	Min Pressure	Max Pressure		Seal Material	Body Material
					AC	DC
16AA12	3/8''	12mm	4.5	0.03MPa	1.6MPa	1.6MPa	PTFE	Brass Stainless Steel
16AA15	1/2''	15mm	4.5
16AA20	3/4''	20mm	9.3
16AA25	1''	25mm	12

Main Dimension of Stainless Steel Solenoid Valve:

PTFE Diaphragm Stainless Steel Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 24V 220V

Orifice Size		12mm	15mm	20mm	25mm
A		75	75	83	100
B		48	48	56	72
C	Brass	106	106	115	128
C	SS304	106	106	117	128
D		13.5	13.5	16.5	20

Brando Factory Production of Solenoid Valves:
