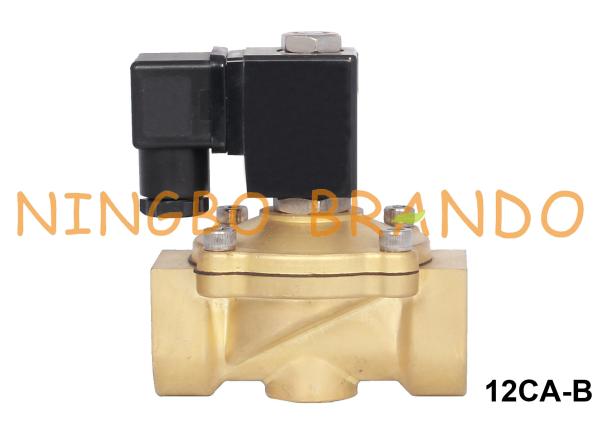

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC

Brand Name : Brando

Model Number : 12CA-B

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Port Size : 3/8'', 1/2'', 3/4'', 1''

Orifice Size : 12mm, 15mm, 20mm, 25mm

Operation : Direct Lifting Diaphragm

Body Material : Brass

Working Medium : Air, Water, etc

Seal Material : NBR, FKM, EPDM

Pressure Range : 0 to 8 bar

Latching Coil Voltages : 6VDC, 12VDC, 24VDC

Contact Now

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC


Product Features of Latching Brass Solenoid Valve:

1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 0.8 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 12mm, 15mm, 20mm, 25mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Operation: Direct Lift Diaphragm
8. Latching Coil Voltage Option: 6VDC, 12VDC, 24VDC, Instant power-on time (0.3 to 0.5 sec)

Technical Data of Latching Brass Solenoid Valve:

Model
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
DC
12CA12
3/8''
12mm
4.5
0MPa
0.8MPa
NBR
EPDM
FKM
Brass
Stainless Steel
12CA15
1/2''
15mm
4.5
12CA20
3/4''
20mm
9.3
12CA25
1''
25mm
12

Main Dimension of Latching Brass Solenoid Valve:

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC

Model
12CA12
12CA15
12CA20
12CA25
A
68
68
68
95
B
56
56
56
72
C
97
97
104
117
D
13.5
13.5
16.5
20


More Latching Solenoid Valves for you to choose:

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC 1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC 1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC

Brando Factory Production Video of Solenoid Valves:

BRANDO Factory Production Picture of Solenoid Valves:

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC

Packaging and Shiping of Brando Solenoid Valves:

1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC 1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC 1'' Magnetic Latching Solenoid Valve For Water Air 6V 12V 24V DC
Internal Box Carton Pallet


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
