Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC

Brand Name : Brando

Model Number : 7FA

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Connection : Sub Base

Orifice Size : 1.6mm, 2.5mm, 3mm, 4mm

Operation Mode : 3 Way Normally Open

Operation : Direct Acting

Body Material : Brass

Working Medium : Air, Water, Oil, Steam

Seal Material : NBR, FKM, EPDM

Pressure Range : 0 to 1.5 MPa

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC


Product Features of Brass Solenoid Valve:

1. Working Medium: Air, Water, Steam, Oil etc.
2. Working Pressure Range: 0 to 1.5 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Connection: Sub Base
5. Orifice Size: 1.6mm, 2.5mm, 3mm, 4mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 3 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

3 Way Normally Open

Model
Body
Orifice Size
Top
Orifice Size
Cv
Min Pressure
Max Pressure
Seal Material
Body Material
AC
DC
7FA161
1.6mm
1.5mm
0.25
0MPa
1.5MPa
1.5MPa
NBR
EPDM
FKM
Brass
Stainless Steel
7FA251
2.5mm
1.5mm
0.25
1.2MPa
1.2MPa
7FA301
3.0mm
1.5mm
0.35
0.9MPa
0.9MPa
7FA401
4.0mm
1.5mm
0.5
0.6MPa
0.6MPa
7FA162
1.6mm
1.5mm
0.25
1.5MPa
1.5MPa
7FA252
2.5mm
1.5mm
0.35
1.2MPa
1.2MPa
7FA302
3.0mm
1.5mm
0.4
0.9MPa
0.9MPa
7FA402
4.0mm
1.5mm
0.61
0.6MPa
0.6MPa

Main Dimension of Sub Base Brass Solenoid Valve:

Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC


Brando Factory Production Video of Solenoid Valves:

More Coffee Machine Solenoid Valves for you to choose:

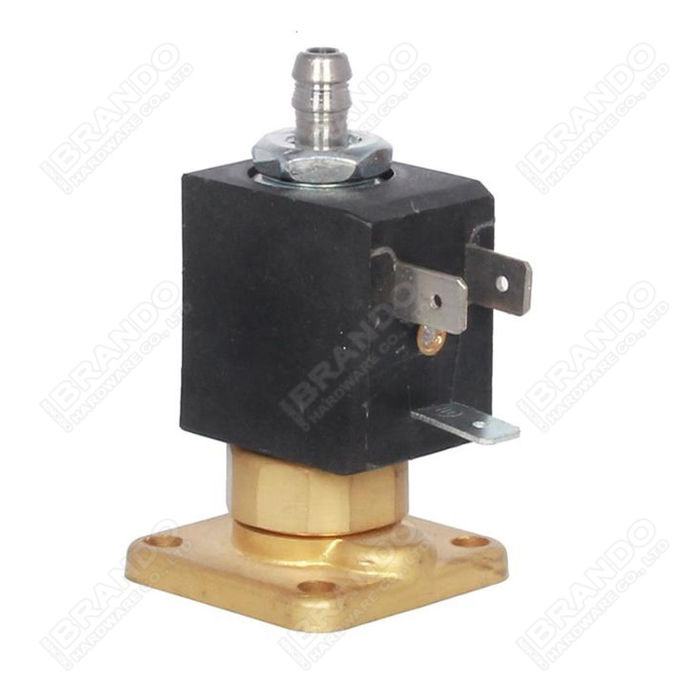

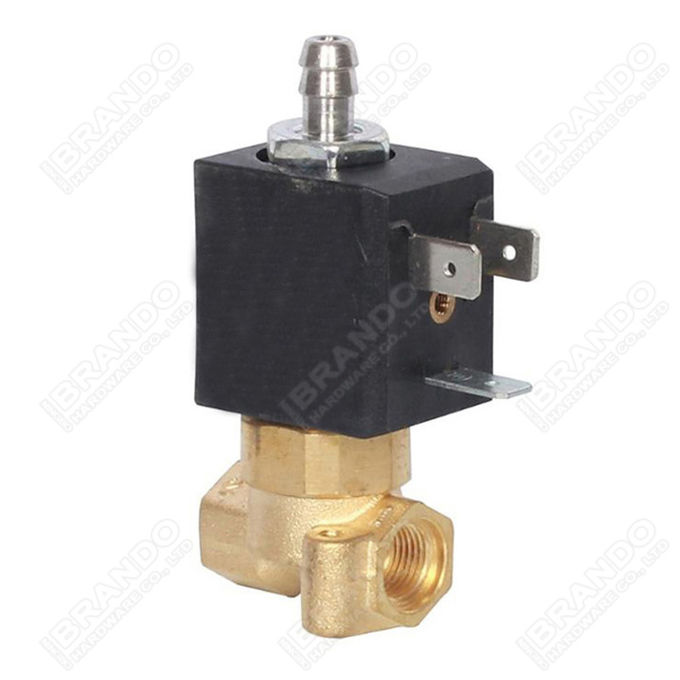

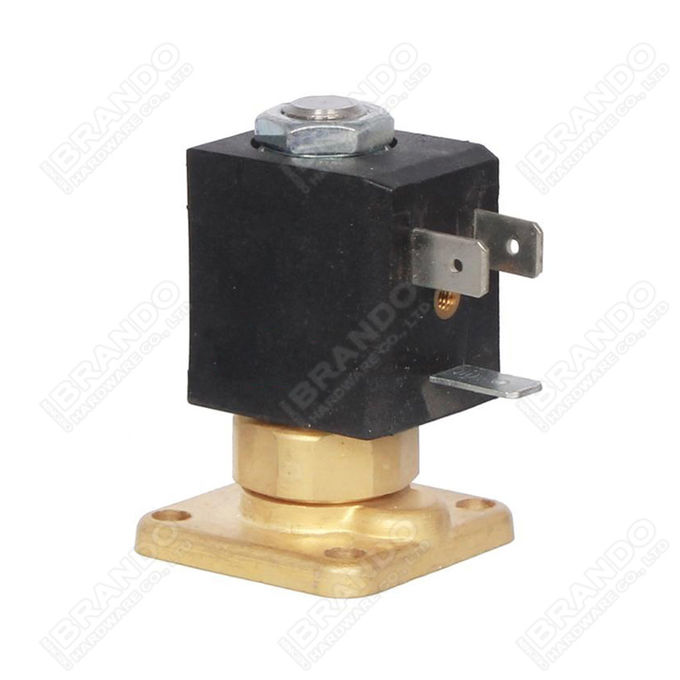

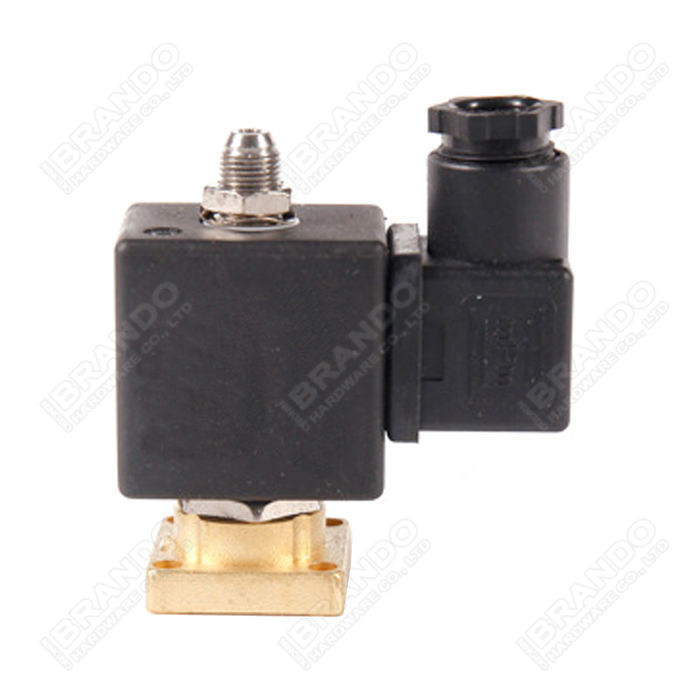

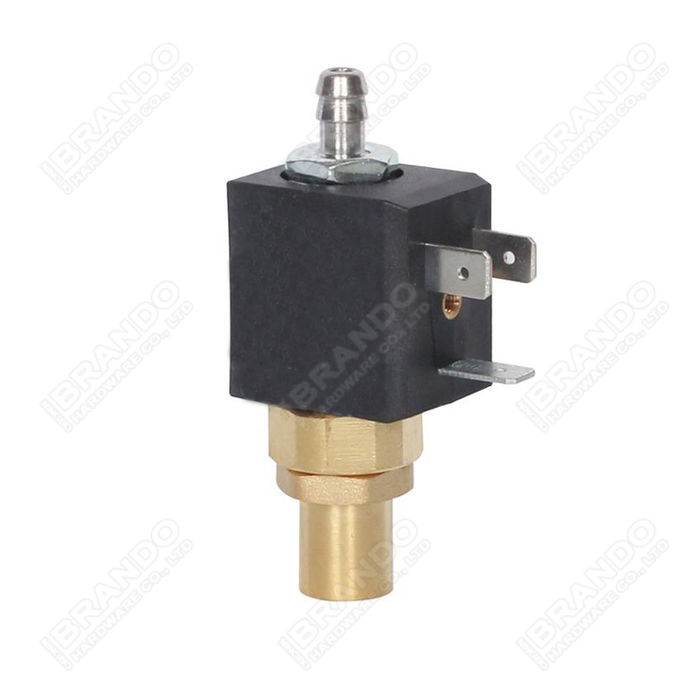

Brass Solenoid Valve
Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC
Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC

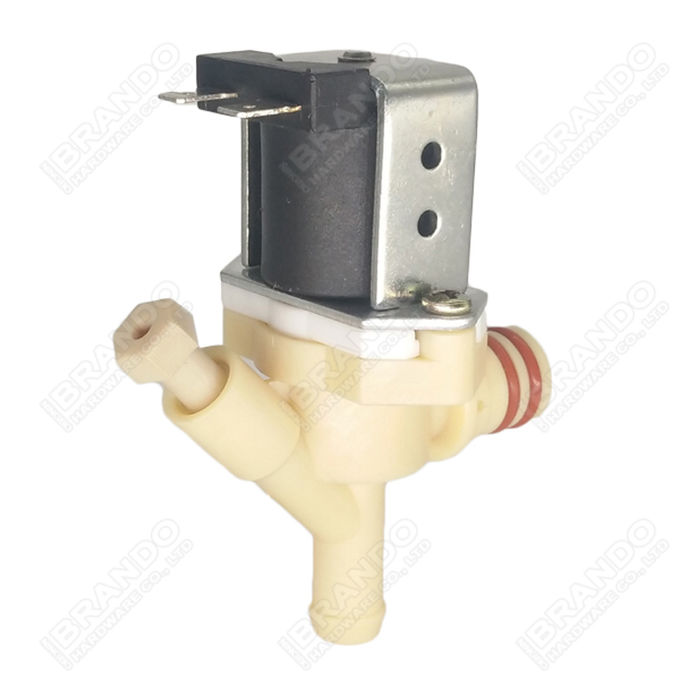

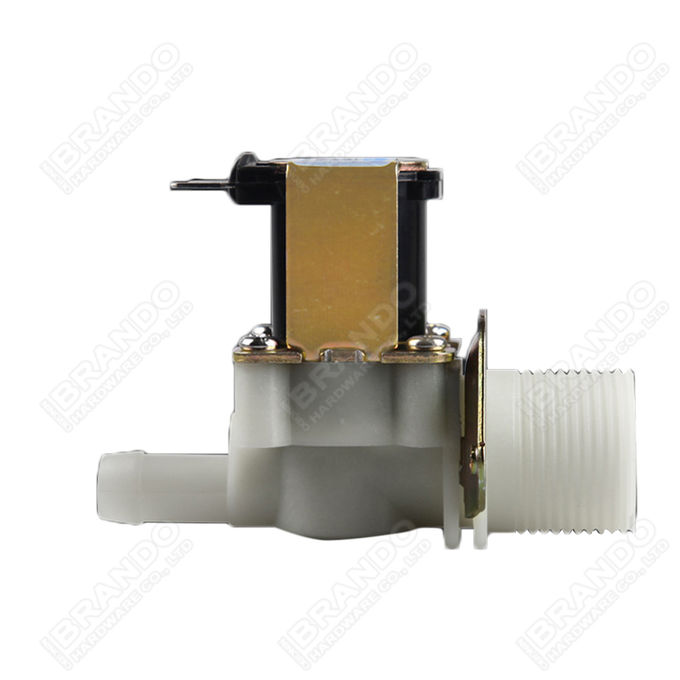

Plastic Solenoid Valve
Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC
Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC

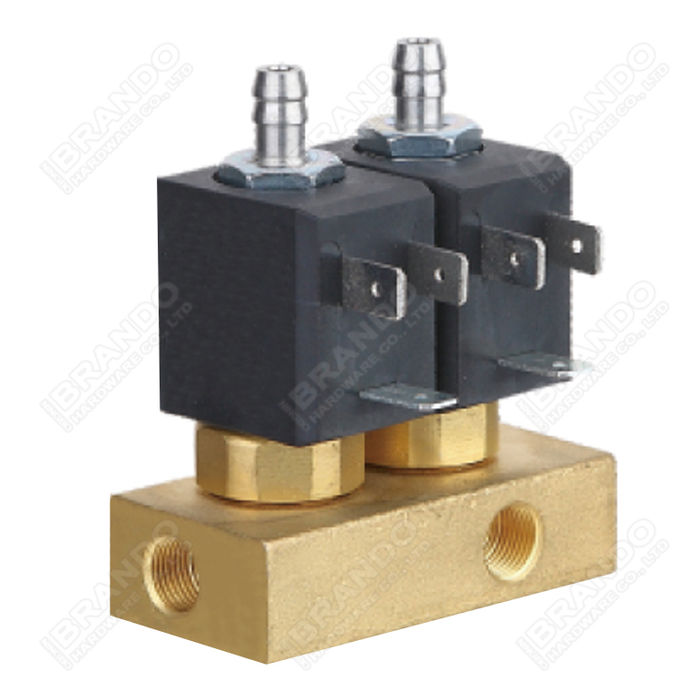

Manifold Solenoid Valve
