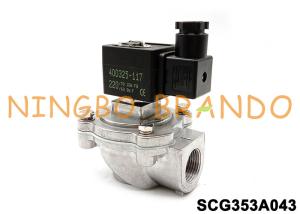

SCG353A043 3/4'' Right Angle Diaphragm Valve DC 24V AC 220V
The pulse jet valve is one of the components of the bag filter. Different models of bag filter will choose different types of pulse jetvalve. So how do you choose the right pulse solenoid valve for the dust collector? One type of dust collector uses a diaphragm pulse valve style. For example, the low-pressure pulse bag type dust collector uses a submerged pulse valve, but the filter area of the different types of bag filter is different, so the size of the pulse jet valve is also different. The filter area is large, and the pulse jet valve with a large size is selected. Instead, select a small pulse jet valve.
Technical Data:
| Model No | SCG353A043 |
| Port Size | G 3/4 Inch |
| Nornimal Size | Φ20 |
| Working Pressure | 0.3~0.8Mpa |
| Working Temperature | -5~+55℃ |
| Relative Humidity | ≤85% |
| Working Medium | Air |
| Protection Class | IP65 |
| Service Life | Over 1000000 times |
| Voltage | AC220V, AC110V, AC24V, DC24V |
Dimension of SCG353A043 Dust Collector Pulse Valve:
| Model No. | BB11036001 |
| Ref No. | 400325 |
| Voltage | AC24V, AC110V, AC220V, DC12V, DC24V |
| Connection | DIN 43650A |
| Other can be customized, please contact us. |
| Model No. | BAPC211037301 |
| Ref No. | C113444 |
| NC/NO | NC |
| 2 Way or 3 Way | 2Way |
| Other can be customized, please contact us. |
| Model No. | A043 |
| Ref No. | C113443 |
| Replace For | SCG353A043 |
| Mounting Hole Dia. | 6.5mm |
| Sealing Disc OD | / |
| Ref. Number | SCG353A043 |
| Working Pressure | 0.3~0.8Mpa |
| Voltage | 24V DC, 110V AC, 220V AC
Other voltages can be customized. |
| Diaphragm Nos | 1 |
| Port Size | G3/4'' |
| Other requirement please contact. |
Details About SCG353A043 Pilot Operated Solenoid Pusle Valve:
Youtube Video of SCG353A043 Right Angle Pneumatic Pulse Valve:
Features of ASCO Type 353 Series Pulse Valve:
Specially designed for reverse jet-type dust collector systems
High flow Cv(s) to 140 for effective bag cleaning
High cycle life and fast opening/closing
High quality polyacetal (POM) piston cartridge provides a long operating life and a large temperature range
Quick mount connection eliminates thread cutting and sealing
Integral operators have molded epoxy coils, with available options
Valves may be mounted in any position
Application of ASCO Type Solenoid Pulse Valve:
The ASCO Type Dust Collector Series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures, and bulkhead fittings that have been specially designed for use in dust collector systems.
Concrete Processing
Grain, Agriculture and Feed
Metal Working (Abrasive Blasting)
Food Processing
Foundries
Pharmaceutical
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
