DC12V 2W040-10 NC 3/8 Inch Water Solenoid Valve 2 Position 2 Way

Brand Name : Brando

Model Number : 2W040-10

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Voltages : 24V DC, 110V AC, 120V AC, 220V AC, 230V AC, 240V AC

Power : Solenoid

Media : Water, Gas, Oil

Port Size : 3/8''

Function : 2/2 Way Noramlly Closed

Operation Type : Direct Acting, Semi-Direct Operated

Valve Body Material : Brass

Diaphragm : NBR, FKM and EPDM

UD Series Model No : UD-6, UD-8, UD-10

UW Series Model No : UW-10, UW-15, UW-20, UW-25, UW-35, UW-40, UW-50

Contact Now

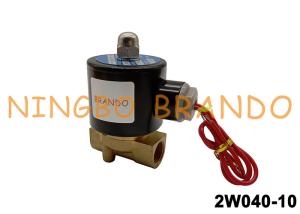

DC12V 2W040-10 NC 3/8 Inch Water Solenoid Valve 2 Position 2 Way

2W040-10

2W: 2 Positon 2 Way Solenoid Valve. Solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the body orifice port. When the valve is energized the plunger opens allowing media to flow through the valve in the cavity port and out the body orifice port.Turn off the power. The orifice closes and flow through the valve stops.

40: The Aperture of Flow Rate is 4 mm

10:Joint Pipe Bore is G3/8 Inch Female Thread


2W Series Model No:2W025-08, 2W040-10, 2W160-15, 2W200-20, 2W250-25, 2W500-50
UD Series Model No:UD-6, UD-8, UD-10
UW Series Model No:UW-10, UW-15, UW-20, UW-25, UW-35, UW-40, UW-50

Dimension of 2W/2S Water Solenoid Valve :

DC12V 2W040-10 NC 3/8 Inch Water Solenoid Valve 2 Position 2 Way

2S Series
2W Series
A
B
C
D
E
2S025-06
2W025-06
64.5
30
75
43
G1/8''
2S025-08
2W025-08
64.5
30
75
43
G1/4''
2S040-10
2W040-10
70.6
32
82.4
53
G3/8''
2S160-10
2W160-10
101.5
57
117
69
G3/8''
2S160-15
2W160-15
101.5
57
117
69
G1/2''
2S200-20
2W200-20
107
57
123.5
73
G3/4''
2S250-25
2W250-25
111.5
73.5
134.5
99
G1''
2S350-35
2W350-35
142
95
172
123
G1-1/4''
2S400-40
2W400-40
142
95
172
123
G1-1/2''
2S500-50
2W500-50
172
123
209
168
G2''

Technical Data:

2W Series
2W025-08
2W040-10
2W160-15
2W200-20
2W250-25
2S350-35
2S400-40
2S500-50
2S Series
2S025-08
2S040-10

2S160-15
2S200-20
2S250-25
2S350-35
2S400-40
2S500-50
Orifice Size
2.5
4
15
20

25
35
40
50
Port Size
1/4''
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Water, Air, Oil, Gas, Steam
Action
Direct Acting
Semi-Direct
Function
2 Way, Normally Closed
Fluid Viscosity
20 CST below

Pressure

Range
0 to 1.0 Mpa
Temp. Range
-5 to +100℃

Product Features:
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve;

2. Able to be operated directly under low pressure;

3. Availability of fluid type:water, air, light oil;

4. Diaphragm accept for customization NBR, Viton, Silicone and EPDM.


Brando Factory Production of Brass Solenoid Valves:


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any problem and inquiry!
