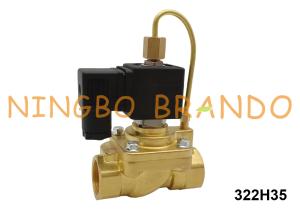

1/2'' 40 Bar 322H35 Parker Type Brass Solenoid Valve Normally Open 24V 110V 220V
Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, laser cutting machines, air compressors, etc
Video of 322H35, 322H36:
Technical Data:
| Model No (Normally Closed) | | |
| Model No (Normally Open) | | |
| Port Size | | |
| Orifice Size | |
| Function | 2 Way Normally Closed, 2 Way Normally Open |
| Operation | |
| Working Medium | |
| Working Pressure Range | |
| Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) |
Main Dimension:
BRANDO Factory Production Video of Solenoid Valves:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves |
 |  |  |  |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
 |  |  |  |
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves |
 |  |  |  |
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
 |  |  |  |
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
