2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal

  • 1
  • 2

Brand Name : Brando

Model Number : DMF-T-62S

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 2.5''

Valve Type : Straight Through

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VAC, 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Contact Now

2.5'' DMF-T-62S SBFEC Type Straight Through Pulse Valve For Dust Removal

Products Description
Pulse Jet valves are also called as dust collector. They are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively. Moving parts of the valve are kept small for minimum inertia but KV values are very high. Dust collector systems are very useful for removing solid pollutants or recovering valuables from exhaust gases before discharging them to the atmosphere.
Different pulse jet valve structure:
1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type
4. Flanged Type
5. Straight Through Type
Ordering Code
2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal

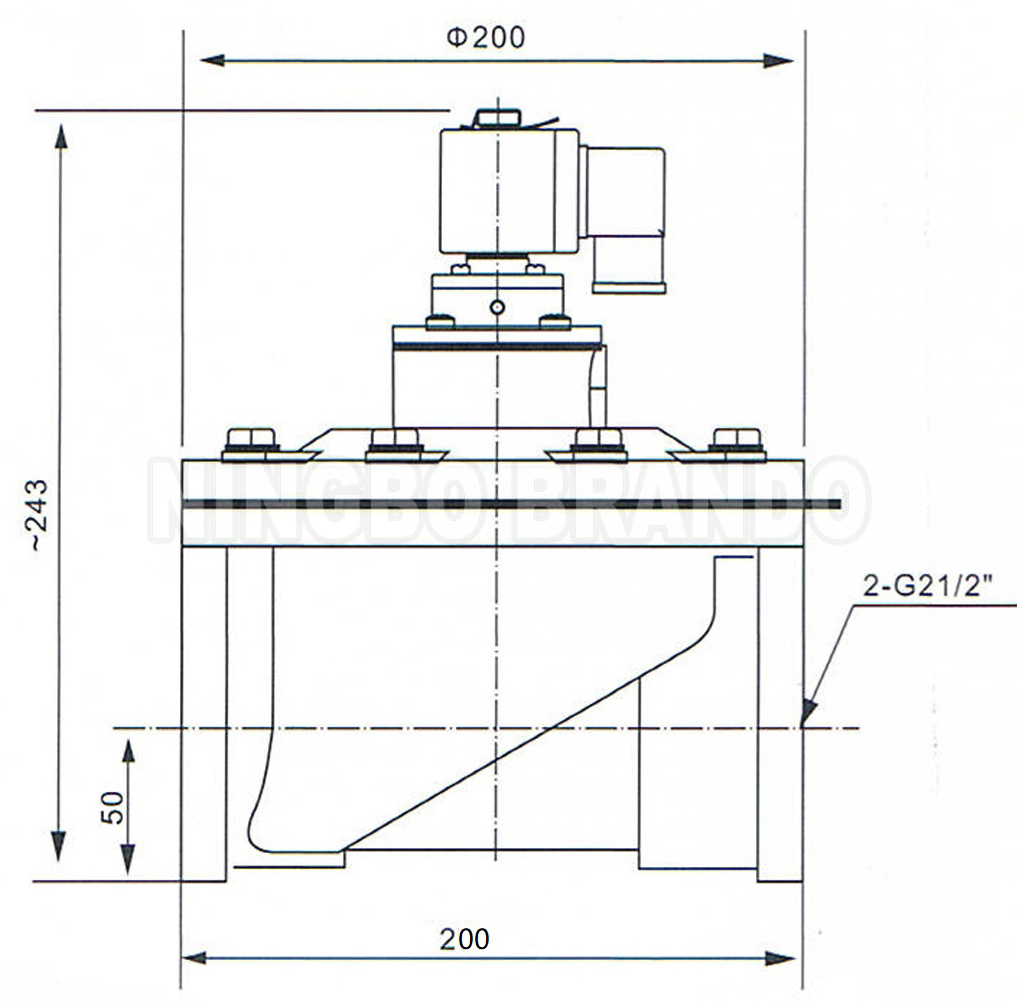

Main Dimension
2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal
DMF-T-62S
Technical Data
Model Number
DMF-T-20
DMF-T-25S
DMF-T-40S
DMF-T-50S
DMF-T-62S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pulse Valve Series
2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal
Our Production
2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal

More BFEC Pulse Valves for you to choose:

2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal
Right Angle Type Quick Mount Type Straight Through Type Submerged Type
2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal 2.5'' DMF-T-62S SBFEC Type Straight Through Solenoid Pulse Valve For Dust Removal
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
