1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : BRANDO

Model Number : DMF-T-40S

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Pulse Valve

Valve Design : Straight Through, Threaded Port

Port Size : 1 1/2''

Diaphragm Material : NBR, FKM

Voltage : 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 to 0.8 MPa

Contact Now

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

DMF-Z-40S type sbfec right angle solenoid pulse jet valves, It is 1-1/2" port size.

Normal is G thread, NPT thread is also available. SBFEC solenoid pulse jet valve, we have two types right angle thread type & submerged type, with different connection from 20mm~102mm, 3/4" ~4". It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.
Suitable for :
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Ordering Code
1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

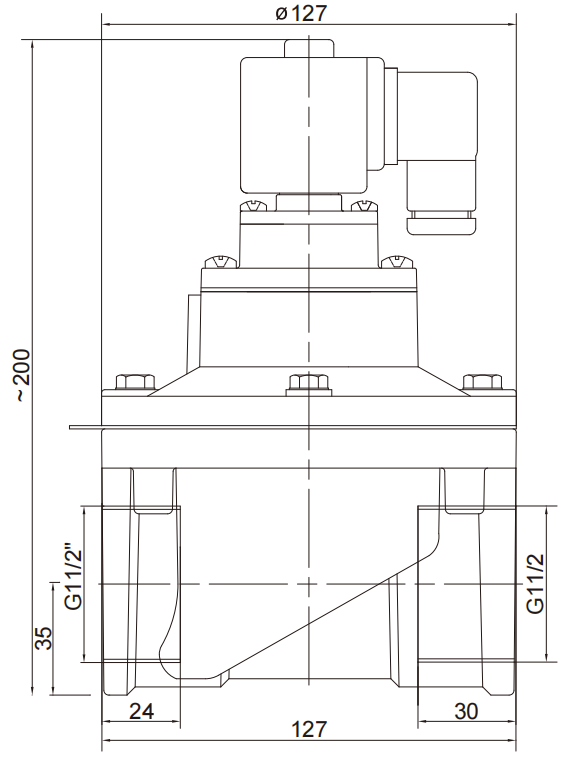

Main Dimension
1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector
DMF-T-40S
Technical Data
Integral Pilot
DMF-T-20
DMF-T-25S
DMF-T-40S
DMF-T-50S
DMF-T-62S
Remote Pilot
MF-T-20
MF-T-25S
MF-T-40S
MF-T-50S
MF-T-62S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pulse Valve Series
1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector
Our Production
1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector

Technical Data of T Series Straight Through Pulse Valve:

Integral Pilot
DMF-T-20
DMF-T-25S
DMF-T-40S
DMF-T-50S
DMF-T-62S
Remote Pilot
MF-T-20
MF-T-25S
MF-T-40S
MF-T-50S
MF-T-62S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

Related Products:

1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector 1 1/2'' BFEC DMF-T-40S Straight Through Pulse Jet Valve For Dust Collector
Solenoid Coil Solenoid Armature Diaphragm Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
