3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : BRANDO

Model Number : DMF-Z-76S

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 days

Packaging Details : Inner Box,Carton,Pallet

Product Name : BFEC Pulse Jet Valve

Valve Type : Right Angle (Threaded)

Port Size : 3''

Coil Voltage : 24VDC, 220VAC

Diaphragm Material : NBR, FKM

No of Diaphragm : 2

Body Material : Aluminum Alloy

Pressure Range : 0.1 to 0.8 MPa

Contact Now

3 Inch DMF-Z-76S SBFEC Type Right Angle Solenoid Pulse Jet Valve For Dust Collector

Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type 4. Flanged Type
5. Straight Through Type
Ordering Code
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

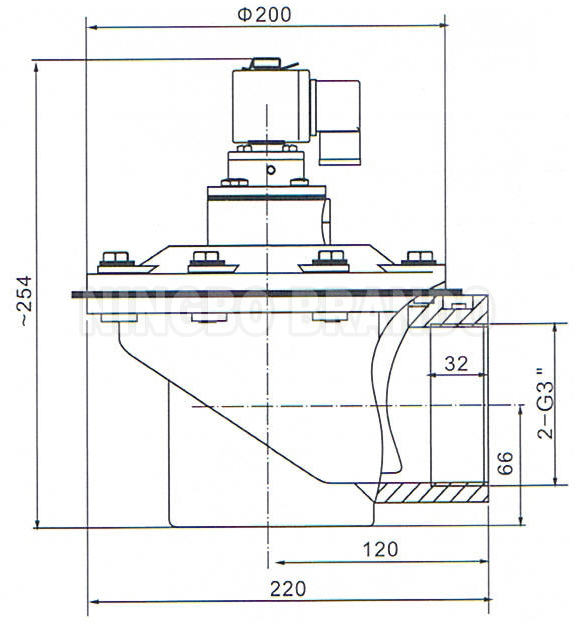

Main Dimension
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
DMF-Z-76S
Technical Data
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
Model No
DMF-Z-20
DMF-Z-25
DMF-Z-40S
DMF-Z-50S
DMF-Z-62S
DMF-Z-76S
DMF-Z-102S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Working Pressure Range
0.1 to 0.8 MPa
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pulse Valve Series
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector
Our Production
3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector


Technical Data of Z series Right Angle Pulse Jet Valves:

Model
Nominal diametrer
Number of diaphragms
Inlet
Outlet
Weight (kg)
mm
inch
DMF-Z-20
Φ20
3/4''
1
3/4''
3/4''
0.65
DMF-Z-25
Φ25
1'''
1
1''
1''
0.8
DMF-Z-40S
Φ40
1 1/2''
2
1 1/2''
1 1/2''
1.4
DMF-Z-50S
Φ50
2''
2
2''
2
2.4
DMF-Z-62S
Φ62
2 1/2''
2
2 1/2''
2 1/2''
3.5
DMF-Z-76S
Φ76
3''
2
3''
3''
4.3
DMF-Z-90S
Φ90
3 1/2''
2
3 1/2''
3 1/2''
5.75
DMF-Z-102S
Φ102
4''
2
4''
4''
7.3
DMF-20L-B
Φ20
3/4''
1
3/4''
Φ27
0.75

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


More BFEC Pulse Valve For You to Choose:

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

Right Angle Type Quick Mount Type Submerged Type

3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector 3 Inch DMF-Z-76S SBFEC Type Right Angle Diaphragm Solenoid Pulse Jet Valve For Dust Collector

Diaphragm Solenoid Coil Armature Assembly Pulse Controller
