1.5" DMF-Z-40S SBFEC Type Right Angle Solenoid Pulse Valve For Dust Collector

Name: 15quot DMFZ40S SBFEC Type Right Angle Solenoid Pulse Valve For Dust Collector
Brand: Brando
Price: 1 USD

China 1.5" DMF-Z-40S SBFEC Type Right Angle Solenoid Pulse Valve For Dust Collector factory

Brand Name : Brando

Model Number : DMF-Z-40S

Certification : ISO, CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1.5''

Valve Type : Right Angle

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Item : SBFEC pulse Jet Valves

Application : Dust collector

Contact Now

1.5" DMF-Z-40S SBFEC Type Right Angle Solenoid Pulse Valve For Dust Collector

Products Description

DMF Solenoid Pulse Jet valves

DMF-Z-40S type sbfec right angle solenoid pulse jet valves, It is 1-1/2" port size.

Normal is G thread, NPT thread is also available.

SBFEC solenoid pulse jet valve, we have two types right angle thread type & submerged type, with different connection from 20mm~102mm, 3/4" ~4".

It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

Suitable for :
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Ordering Code

1.5" DMF-Z-40S SBFEC Type Right Angle Solenoid Pulse Valve For Dust Collector

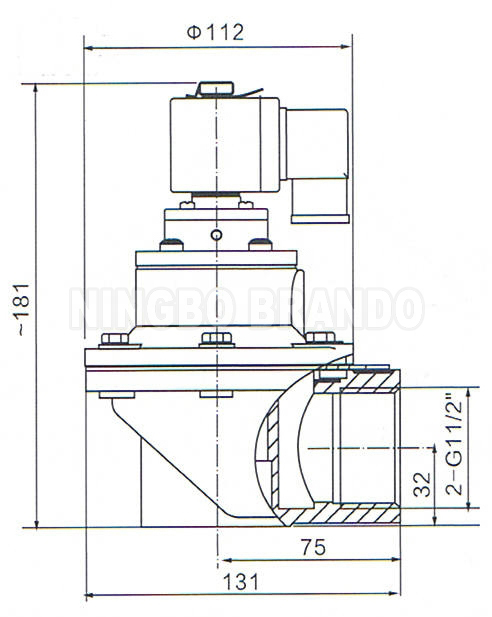

Main Dimension

DMF-Z-40S

Technical Data

Model No	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1		2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Working Pressure Range	0.1 to 0.8 MPa
Coil Voltage	24VDC, 24VAC, 110VAC, 220VAC

Pulse Valve Series

Our Production

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
