BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : Brando

Model Number : DMF-ZF-40S

Certification : ISO, CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1.5''

Valve Type : Quick Mount, Fixed Nut Port

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VAC, 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Inlet Connection : Flanged

Contact Now

BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector

Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type 4. Flanged Type
5. Straight Through Type

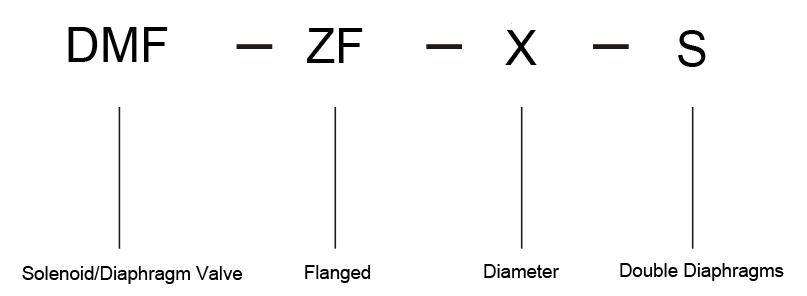

Ordering Code
BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector

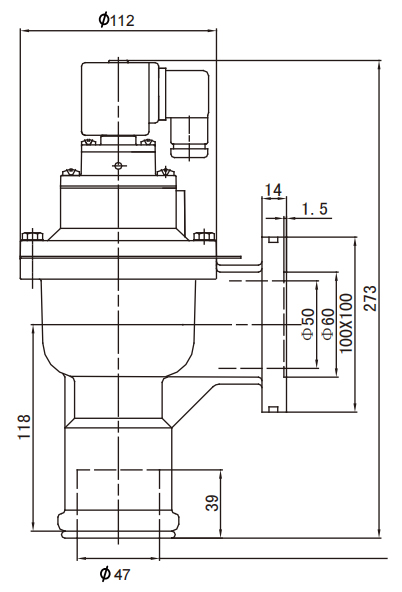

Main Dimension
BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector
DMF-ZF-40S
Technical Data
Integral Pilot
DMF-ZF-25
DMF-ZF-40S
Remote Pilot
MF-ZF-25
MF-ZF-40S
Connection Size (mm)
34
48
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa
Pulse Valve Series
BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Our Production
BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector

More BFEC Pulse Valves for you to choose:

BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Right Angle Type Quick Mount Type Straight Through Type Submerged Type
BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector BFEC DMF-ZF-40S 1.5'' Flanged Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
