DMF-Z-25 1" BFEC Right Angle Solenoid Pulse Valve For Dust Removal 24V 110V 220V

Name: DMFZ25 1quot BFEC Right Angle Solenoid Pulse Valve For Dust Removal 24V 110V 220V
Brand: Brando
Price: 1 USD

China DMF-Z-25 1" BFEC Right Angle Solenoid Pulse Valve For Dust Removal 24V 110V 220V factory

Brand Name : Brando

Model Number : DMF-Z-25

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1''

Valve Type : Right Angle

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VDC, 24VAC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Pipe Connection : Threaded

Contact Now

1'' DMF-Z-25 BFEC Right Angle Pulse Solenoid Valve For Dust Removal

Products Description

DMF-Z / MF-Z type Solenoid Pulse Jet valves

DMF-Z-25 type SBFEC right angle solenoid pulse jet valve. It is 1inc port size.

Normal is G thread, NPT thread is also available.

SBFEC right angle solenoid pulse jet valve, DMF Series is solenoid control pulse jet valves, MF series is air control pulse jet valves, & we have two types right angle thread type & submerged type, with different connection from 20mm~102mm, 3/4" ~4".

It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

Ordering Code

DMF-Z-25 1" BFEC Right Angle Solenoid Pulse Valve For Dust Removal 24V 110V 220V

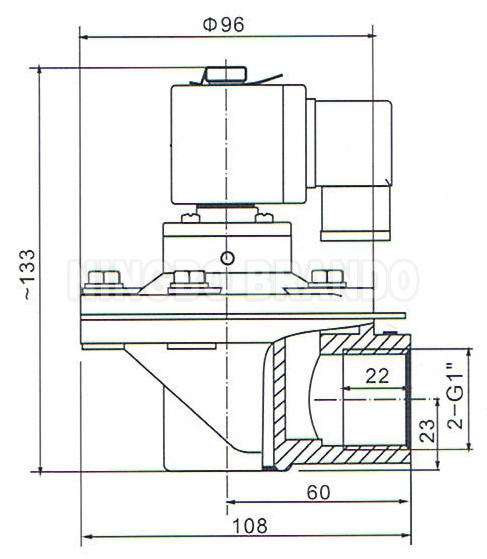

Main Dimension

DMF-Z-25

Technical Data

Model No	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1		2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Working Pressure Range	0.1 to 0.8 MPa
Coil Voltage	24VDC, 24VAC, 110VAC, 220VAC

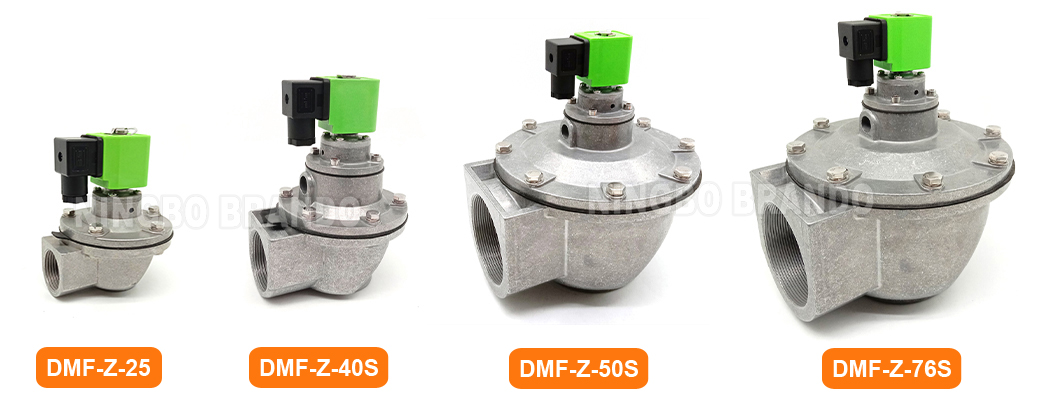

Pulse Valve Series

Our Production

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
