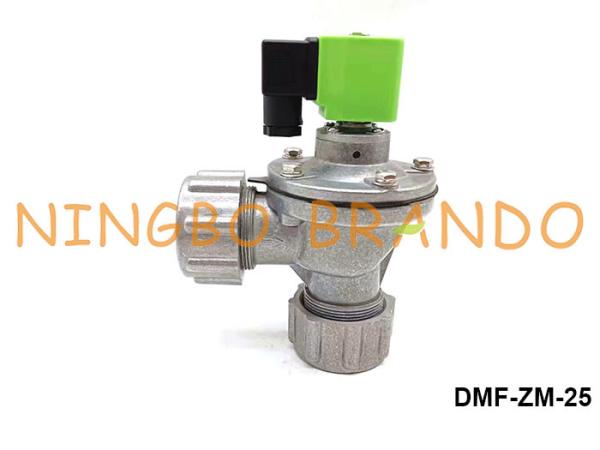

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

Name: DMFZM25 1 BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut
Brand: Brando
Price: 1 USD

China DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut factory

Brand Name : Brando

Model Number : DMF-ZM-25

Certification : ISO, CE

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1''

Valve Type : Quick Mount, Fixed Nut Port

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VAC, 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Power : Solenoid

Contact Now

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
The DMF-Z solenoid/diaphragm valve is kind of vertical-angle valve, with an included angle of 90° between inlet and outlet. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements.
  The DMF-Y solenoid/diaphragm valve is kind of submerged valve (namely, insert valve), which is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.
  DMF-ZM The Solenoid/Diaphragm valve pulse jet valve is kind of vertical-angle valve similar to the z-series valves, suitable for connection between gas bag and blowing tube of a dust collector. It has fixed nuts for installation purposes at the inlet and outlet end, for easier installation and application.
  The DMF-T solenoid/diaphragm valve is kind of through valve, with an included angle of 180° between the inlet and outlet (central line of both inlet and outlet are the same straight line). Also, the inlet is connected to a gas storage tank, while its outlet is connected to a blowing tube.

Quick Mount Pulse Valve Options

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

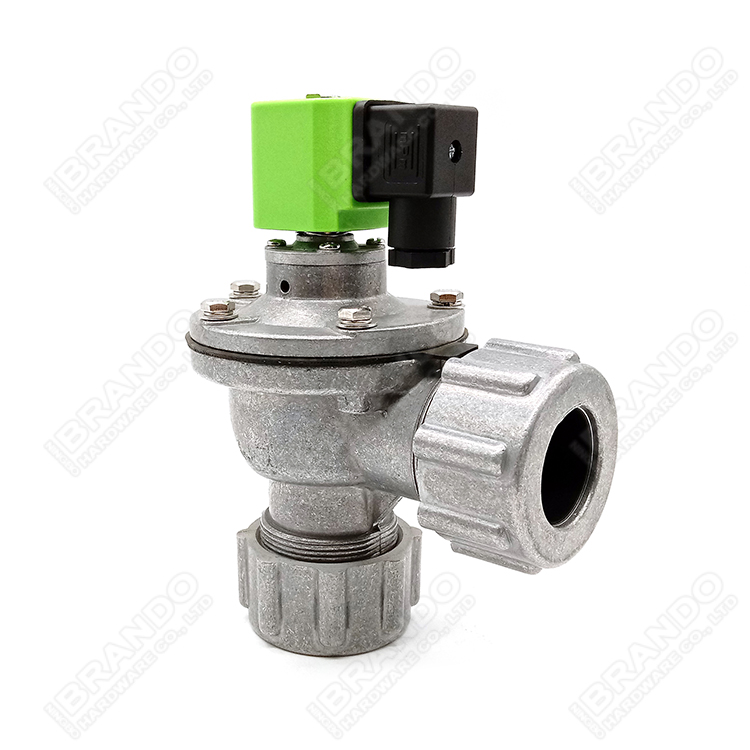

DMF-ZM-20

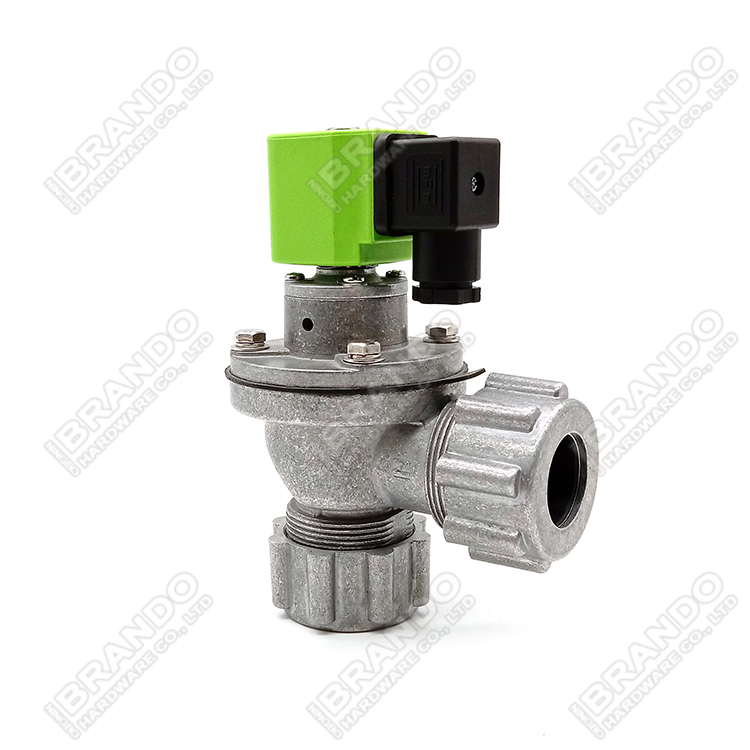

DMF-ZM-25

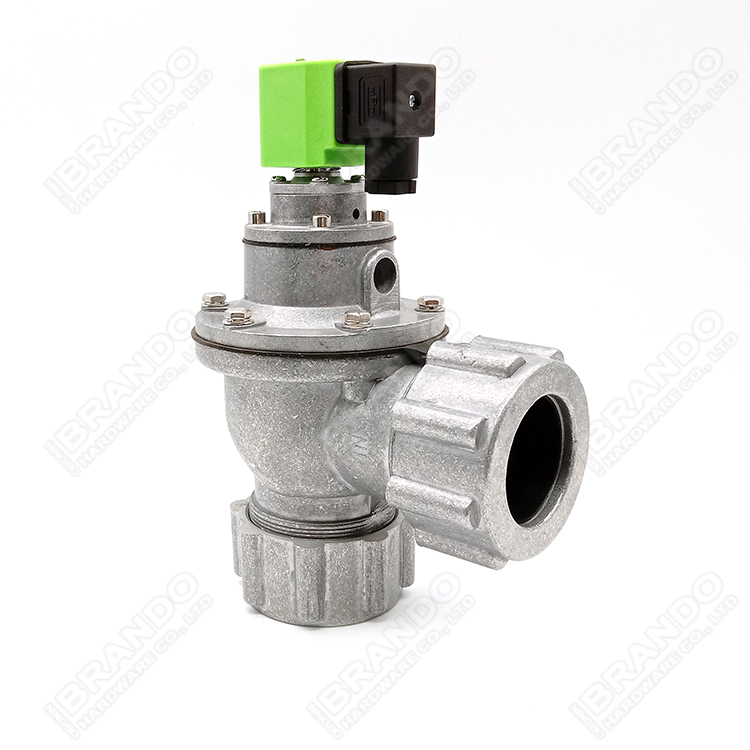

DMF-ZM-40S

Technical Data

Model No	DMF-ZM-20	DMF-ZM-25	DMF-ZM-40S
Port Size (mm)	27	34	48
Port Size (Inch)	3/4''	1''	1 1/2''
Diaphragm Number	1	1	2
Diaphragm Material	NBR, FKM
Valve Body Material	Aluminum Alloy
Coil Voltage	110VAC, 220VAC, 24VDC
Pressure Range	0.1 to 0.8 MPa

Dimension of DMF-ZM-25 Pulse Jet Valve:

DMF-ZM-25 1'' BFEC Quick Mount Air Pulse Valve For Dust Removal Fixed Nut

Our Production

Packing&Shipping

Internal Box

Carton

Pallet

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

OEM ODM Service

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
