CA25DD 1" Goyen Type DD Series Pulse Jet Valve For Dust Collector

Name: CA25DD 1quot Goyen Type DD Series Pulse Jet Valve For Dust Collector
Brand: Brando
Price: 1 USD

China CA25DD 1" Goyen Type DD Series Pulse Jet Valve For Dust Collector factory

Brand Name : Brando

Model Number : CA25DD

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1''

Valve Series : DD

Valve Structure : Right Angle, Dresser Nut

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 24VDC, 24VAC, 110VAC, 220VAC

Structure : Diaphragm

Body Material : Aluminum (Diecast)

Power : Solenoid

Application : Dust Collector

Contact Now

CA25DD 1" Goyen Type DD Series Pulse Jet Valve For Dust Collector

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. CA25DD type pulse valve, which is compression fitting pipe version, there are fixed nut at both ends which make it easy to install and use the valve.
 It is also right angle with the 90o angle between the inlet and outlet, & solenoid control, 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

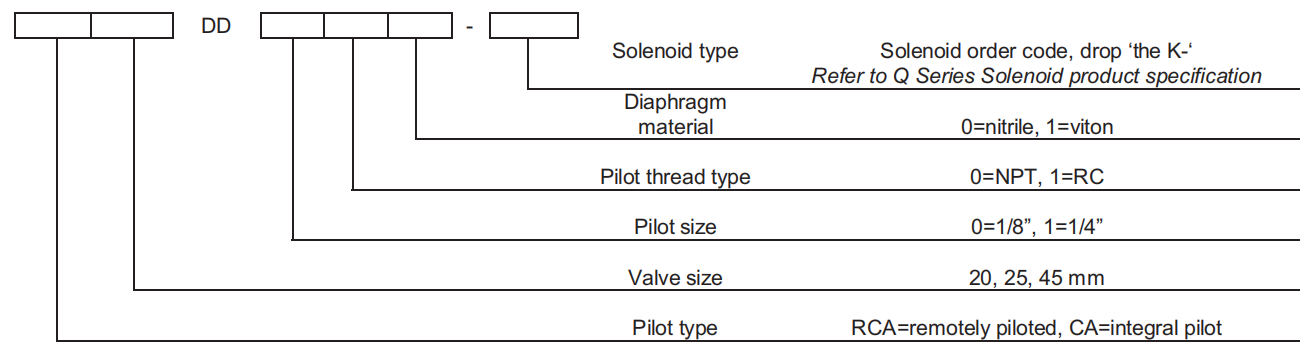

Ordering Code

CA25DD 1" Goyen Type DD Series Pulse Jet Valve For Dust Collector

Main Dimension

CA25DD

Technical Data

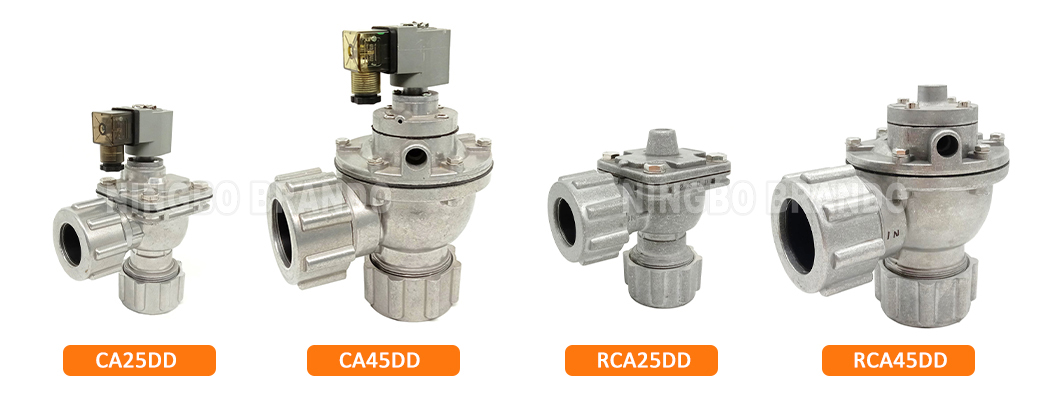

Integral Pilot Type	CA20DD	CA25DD	CA45DD
Remote Pilot Type	RCA20DD	RCA25DD	RCA45DD
Port Size	3/4''	1''	1 1/2''
Pilot Size	1/8'', 1/4''
Pipe Connection	Dresser Nut
Diaphragm Number	1		2
Working Pressure Range	5 to 125 psi
Diaphragm Material	NBR, FKM
Body Material	Aluminum (diecast)
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Pulse Valve Series
