CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal

  • 1
  • 2

Brand Name : Brando

Model Number : CA45FS

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1 1/2''

Valve Series : FS

Valve Structure : Right Angle, Flanged Port

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 220VAC, 110VAC, 24VAC, 24VDC

Body Material : Aluminum Alloy

Power : Solenoid

Contact Now

CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal

Products Description
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
* Right Angle Type
* Manifold Mount Type
* Dresser Nut Type * Straight Through Type
* Flanged Type

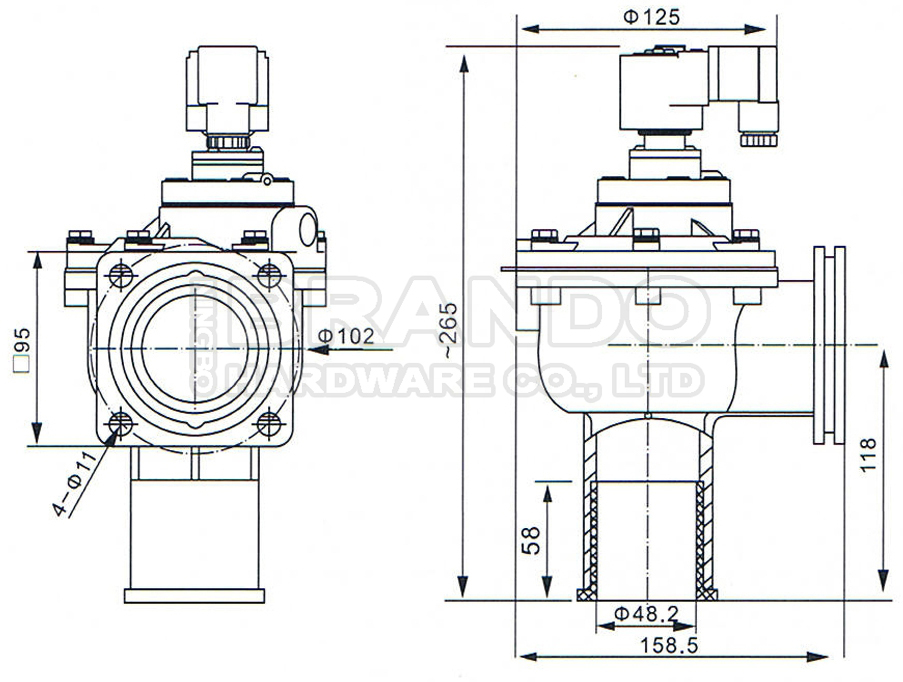

Main Dimension
CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal

CA45FS
Technical Data
Model Number
CA25FS
CA45FS
Port Size
1''
1.5''
Connection
Flanged
Working Pressure Range
0.3 to 0.8 Mpa
Coil Voltage
24VAC, 110VAC, 220VAC, 24VDC
Valve Body Material
Aluminium Alloy
Diaphragm Material
NBR (Standard), FKM (Option)
CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal

More Goyen Type Pulse Valves for you to choose:

CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal
T Series DD Series FS Series MM Series
CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal CA45FS Goyen Type FS Series Flanged Pulse Jet Valve For Dust Removal
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
