SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

  • 1
  • 2

Brand Name : Brando

Model Number : SCG353A051

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Type : Right Angle Type Diaphragm Valve

Power : Solenoid

Media : Air

Port Size : 2'' Inch

Structure : Diaphragm

Body Material : Aluminum Alloy

Diaphragm Material : NBR(Common), FKM(Available)

Number of Diaphragm : 2

Pressure : 0.1 to 0.8MPa

Temperature : -25 to +80℃

Contact Now

SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

Products Description
Working principle of 353 series dust collector valves:
The two chambers of the dust collector valves are connected together through an air passage (smaller in diameter than the pilot valve orifice when so equipped). When the orifice is opened, the air in the upper chamber is exhausted, at a much faster rate than the speed of which air enters through the air passage, therfore the air pressure in the upper chamber drops significantly. As this occurs, the higher air pressure in the lower chamber pushes the diaphragm up allowing a large volume of air through to the bottom chamber and its outlet connected to the dust collector bags. This sudden burst of air inflates the filter bags or "pops" the filter bags so as to shake loose accumulated material on the outside of each filter bag. When the orifice closes, the pressure in the upper and lower chambers equalize and the diaphragm returns to its original position, aided by the force of a return spring. The dust collector valves are important components to keep dust collector systems operating efficiently and effectively.

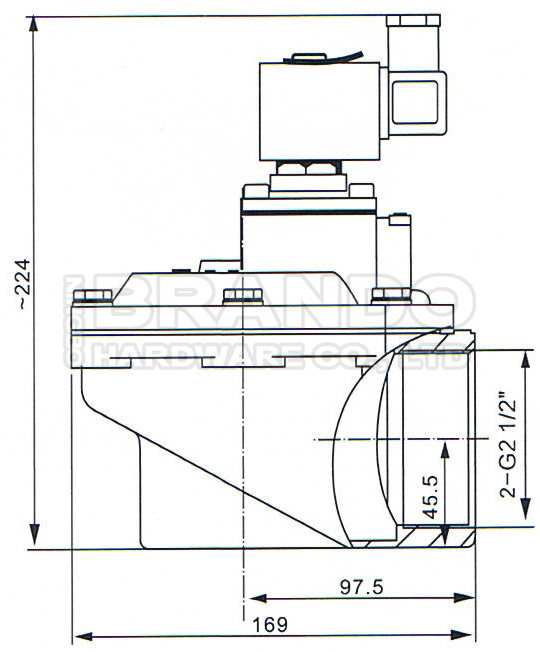

Main Dimension
SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

SCG353A051
353 Series Pulse Jet Valves
Model
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 8.5 bar
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle, Threaded
Our Production
SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve
Packing&Shipping
SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

Internal Box
SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

Carton
SCG353A051 2.5'' Threaded Right Angle 353 Series Solenoid Pulse Jet Valve

Pallet

OEM ODM Service

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
