1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC

  • 1
  • 2

Brand Name : Brando

Model Number : SCG353A047

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Product Name : Pulse Jet Valve

Port Size : 1.5''

Remote Or Integral : Integral Pilot

Body Material : Aluminum Diecast

Diaphragm Material : NBR (TPE on request)

Pressure Range : 0.3 to 0.8MPa

Valve Type : Right Angle

Voltages : 220V AC, 24V DC

Contact Now

1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve

Products Description

353 Series ASCO Type Pulse Jet Valve:

1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051.

2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045.

3. Immersion Pulse Jet Valve: SCXE353.060.

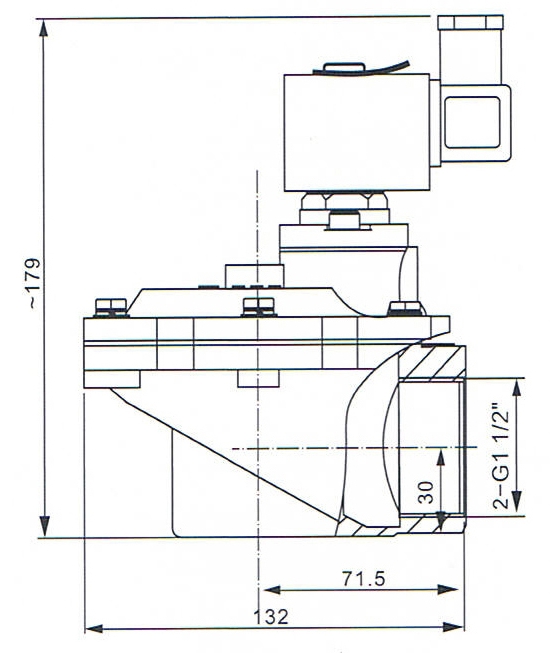

Main Dimension
1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC
SCG353A047
Technical Data
1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1 1/2''
G2''
G2 1/2''
Orifice Size
25mm
25mm
50mm
66mm
66mm
Diaphragm Number
1
2
Diaphragm Material
TPE, NBR, FKM
NBR, FKM
Body Material
Aluminium (Diecast)
Operating Pressure Differential
0.35 to 8.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Our Production
1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC

More ASCO Type Pulse Valve For You to Choose:

1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC

Right Angle Type Remote Pilot Type Immersion Type

1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC1.5" SCG353A047 Right Angle Diaphragm Integral Pilot Pulse Valve 12VDC 24VDC 110VAC 220VAC

Diaphragm Solenoid Coil Armature Assembly Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
