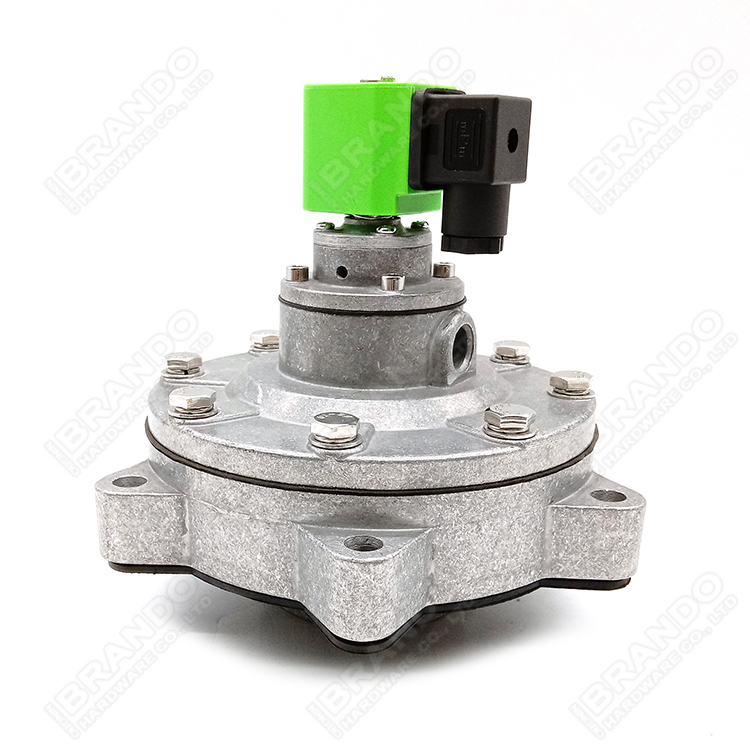

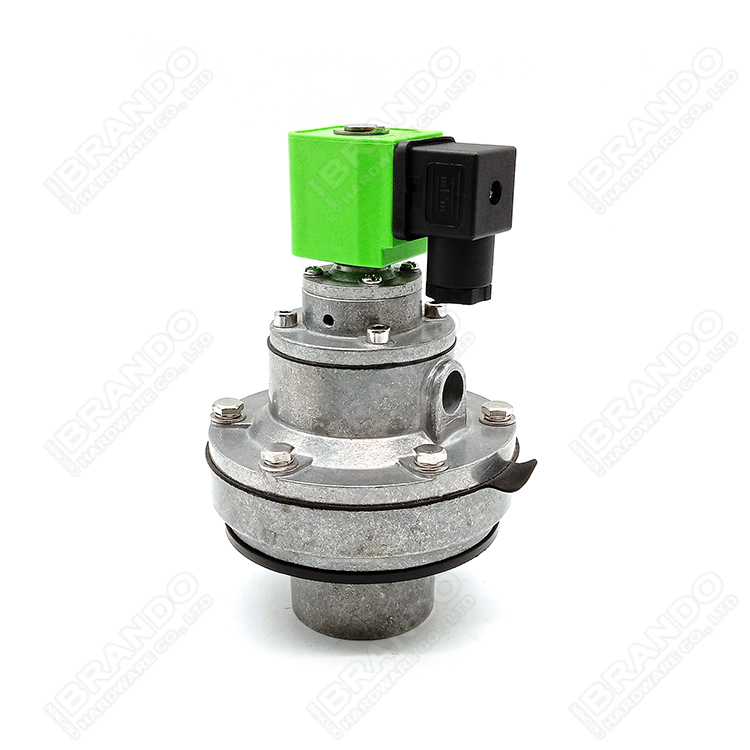

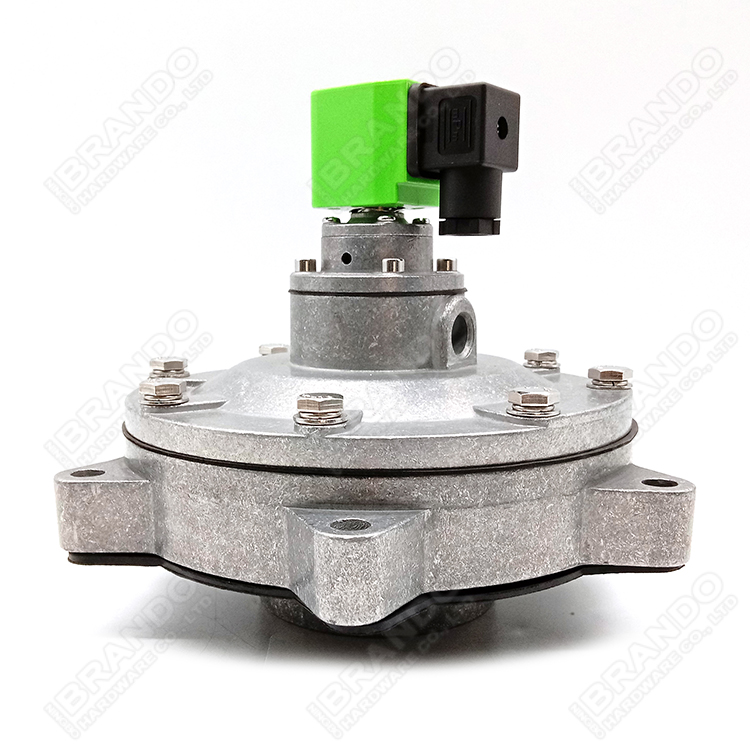

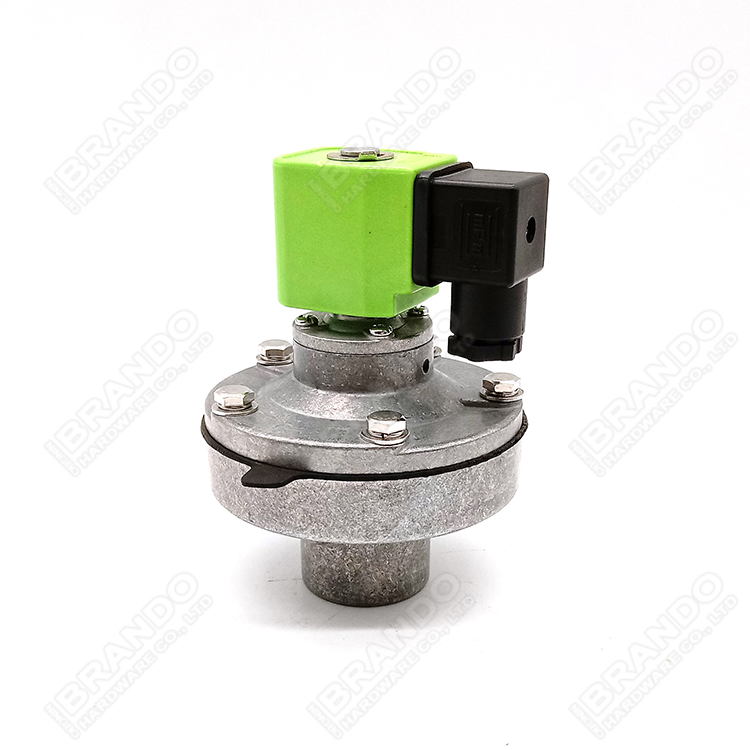

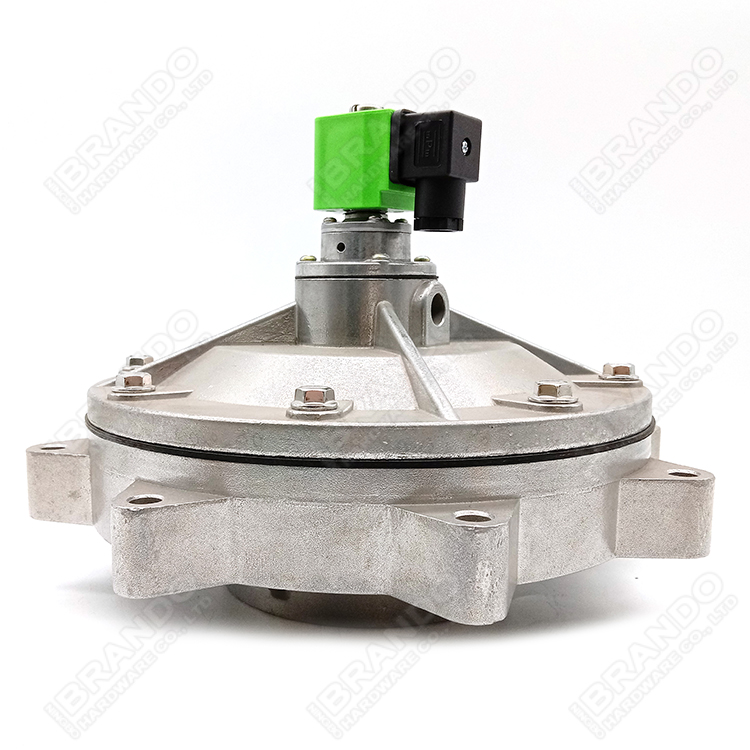

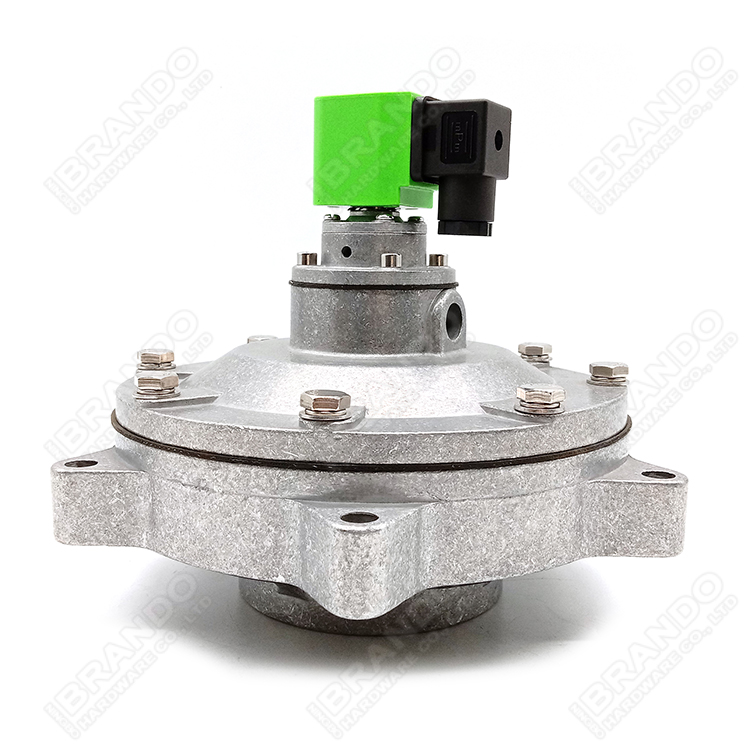

1.5 Inch DMF-Y-40S SBFEC Type Embedded Solenoid Pulse Jet Valve For Dust Removal

Name: 15 Inch DMFY40S SBFEC Type Embedded Solenoid Pulse Jet Valve For Dust Removal
Brand: Brando
Price: 1 USD

China 1.5 Inch DMF-Y-40S SBFEC Type Embedded Solenoid Pulse Jet Valve For Dust Removal factory

Brand Name : Brando

Model Number : DMF-Y-40S

Certification : ISO, CE

Place of Origin : China

MOQ : 1 Pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1 1/2''

Valve Type : Submerged

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Power : Solenoid

Contact Now

DMF-Y-40S SBFEC Type Submerged Pulse Jet Valve For Dust Removal

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
  * Right Angle Type
  * Submerged Type
  * Quick Mount Type  * Straight Through Type
  * Flanged Type

Submerged Pulse Valve Options

1.5 Inch DMF-Y-40S SBFEC Type Embedded Solenoid Pulse Jet Valve For Dust Removal

DMF-Y-25

DMF-Y-40S

DMF-Y-50S

DMF-Y-62S

DMF-Y-76S

DMF-Y-102S

Technical Data

Model Number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port Size (Inch)	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 110VAC, 220VAC

Our Production

Dimension of DMF-Y-40S Pulse Jet Valve:

1.5 Inch DMF-Y-40S SBFEC Type Embedded Solenoid Pulse Jet Valve For Dust Removal

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

OEM ODM Service

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
