SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : Brando

Model Number : SCG353A043

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Port Size : G3/4''

Nonimal diameter : φ20

Valve Type : Right Angle

Connection Type : Threaded

Media : Air

Working Pressure : 0.3~0.8Mpa

Voltage : AC220V, AC110V, AC24V, DC24V

Action Type : Diaphragm Pilot Operated

Diaphragm Material : NBR, TPE

Valve body material : Aluminum ADC12

Price : Negotiation

Contact Now

SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve

Products Description
These valves are specifically developed for filter cleaning of dust collectors and baghouses in reverse pulse jet systems. Those applications require high peak pressure, high flow rates, long life, and extremely fast valve opening and closing for effective filter cleaning while minimizing compressed air waste. When considering pulse valve characteristics, key attributes sought alike include robust performance, reliability, and ease of use. Today’s more popular pulse valves on the market offer users a simplified design that helps to maximize valve performance, translating into longer system uptimes. For the functional design of a pulse valve, there are multiple connection options, including threaded, dresser, and even a quick-mount option that enables faster, easier, and more secure installation.

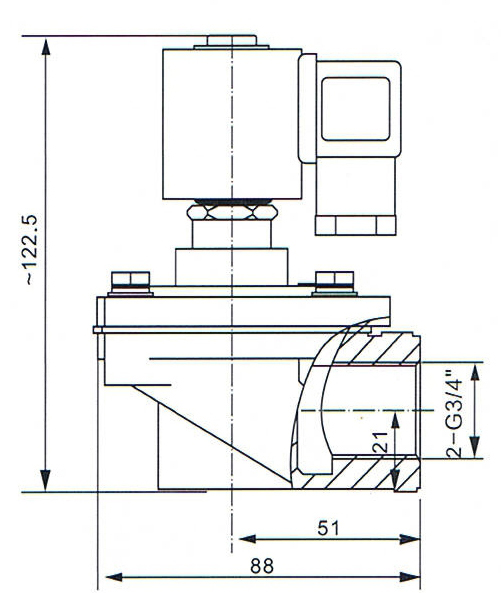

Main Dimension
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
SCG353A043
Technical Data
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1 1/2''
G2''
G2 1/2''
Orifice Size
25mm
25mm
50mm
66mm
66mm
Diaphragm Number
1
2
Diaphragm Material
TPE, NBR, FKM
NBR, FKM
Body Material
Aluminium (Diecast)
Operating Pressure Differential
0.35 to 8.5 bar
Voltage
24VDC, 24VAC, 110VAC, 220VAC

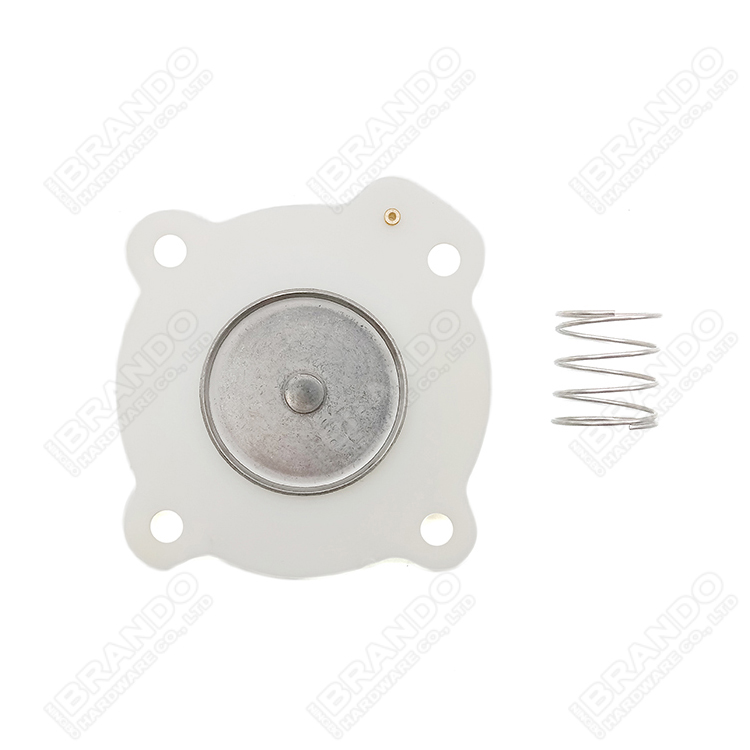

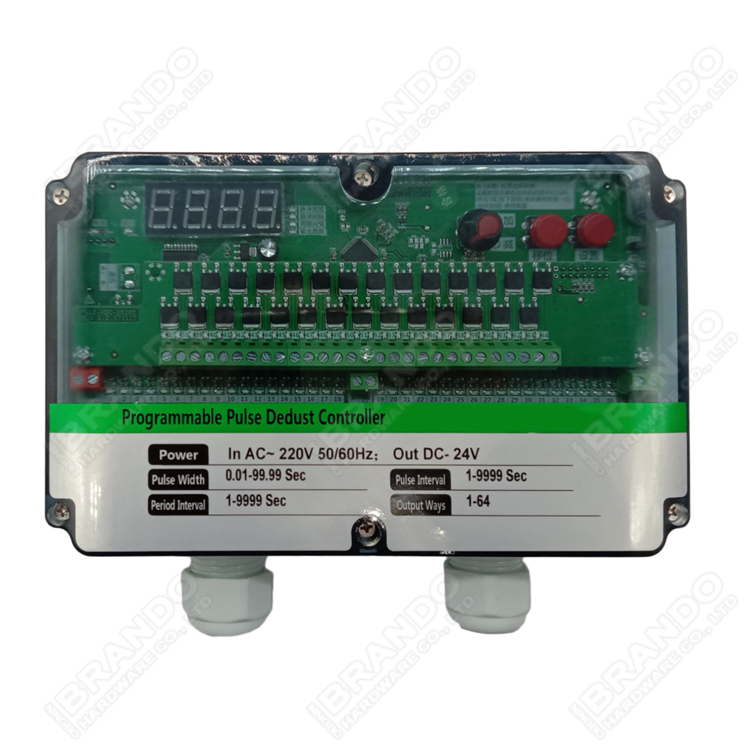

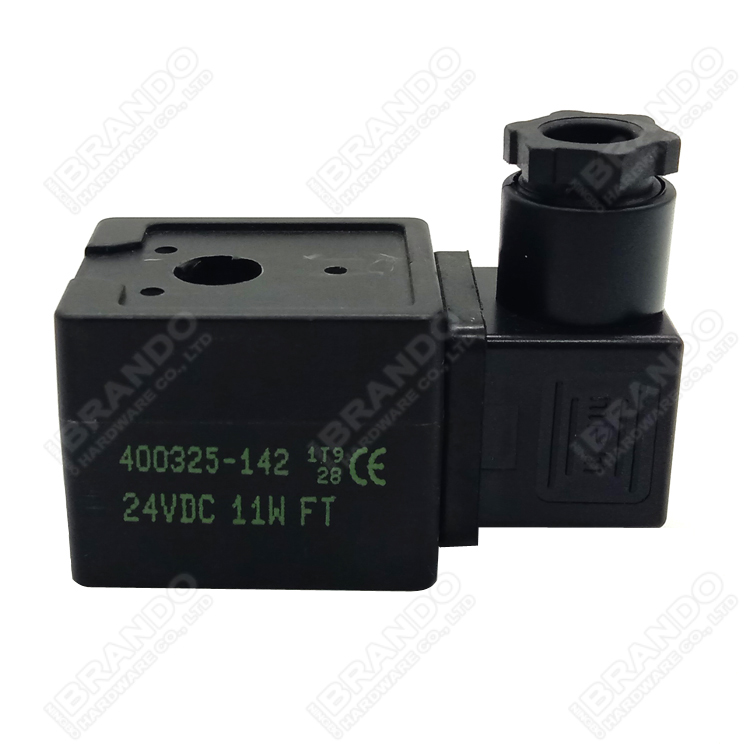

Spare Parts & Controller
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector
Our Production
SCG353A043 3/4'' Threaded 353 Series Solenoid Diaphragm Pulse Jet Valve For Dust Collector

Application of ASCO Type Solenoid Pulse Valve:

The ASCO Type Dust Collector Series are high-flow fast-opening 2-way valves, pilot valves, pilot valve enclosures, and bulkhead fittings that have been specially designed for use in dust collector systems.

Concrete Processing
Grain, Agriculture and Feed
Metal Working (Abrasive Blasting)
Food Processing
Foundries
Pharmaceutical

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel

Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
