SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

  • 1
  • 2

Brand Name : Brando

Model Number : SCG353A044

Certification : CE

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Port Size : G 1"

Nornimal Size : 25mm

Number of Diaphragm : 1

Action Type : Pilot Operated

Valve Type : Right Angle Threaded

Valve Body Material : Aluminum Alloy

Power : Solenoid

Structure : Diaphragm

Application : Dust Collector

Voltage : AC220V, AC110V, AC24V, DC24V

Price : Negotiation

Contact Now

SCG353A044 1'' Dust Collector Diaphragm Valve Right Angle 353 Series

Products Description
ASCO Type 353 Series high flow die-casting aluminum bodies, Integral compression fittings for fast, easy, secure installation. It's specially designed for reverse jet type dust collector systems. Quick mount connection eliminates thread cutting and sealing. Valves may be mounted in any position. The concept of pulse -jet dust collection system is basic: dirty air goes in, dust or particulate gets removed, and clean air comes out.

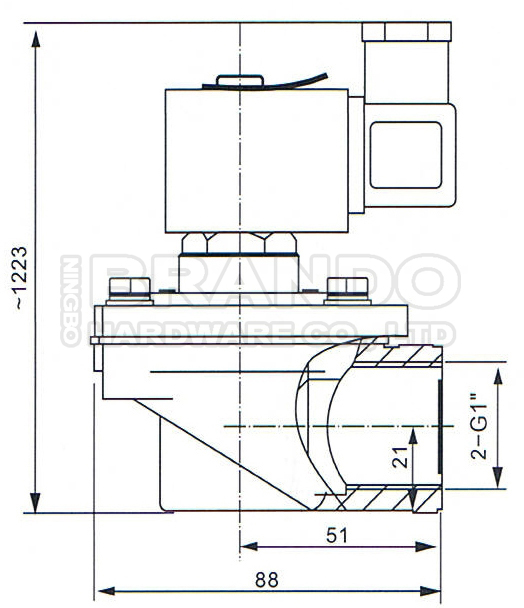

Main Dimension
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

SCG353A044
353 Series Pulse Jet Valves
Model
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 0.85 MPa
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle Type

Our Production
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse
Packing&Shipping
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

Internal Box
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

Carton
SCG353A044 1'' Threaded Right Angle Pulse Jet Valve For Dust Collector Baghouse

Pallet

Technical Data:

Model No SCG353A044
Port Size G1 Inch
Working Pressure 0.3~0.8Mpa
Working Temperature -5~+55℃
Working Medium Air
Relative Humidity ≤85%
Protection Class IP65
Service Life Over 1000000 times
Voltage AC220V, AC110V, AC24V, DC24V
Special voltages and specifications , please contant us.

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
