BFEC DMF-Y-50S 2'' Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse Bag Filter

Name: BFEC DMFY50S 2 Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse Bag Filter
Brand: BRANDO
Price: 1 USD

China BFEC DMF-Y-50S 2'' Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse Bag Filter factory

Brand Name : BRANDO

Model Number : DMF-Y-50S

Certification : ISO, CE

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 2''

Valve Type : Submerged

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VDC, 24VAC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Application : Dust Collector

Contact Now

BFEC DMF-Y-50S 2'' Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse

Products Description

Pulse solenoid valves, or Dust Collector Valves are designed for use in filtering systems of dust collectors. They are most commonly used to clean cartridge filters, ceramic filters, and fibre filters. The solenoid valves are based on a pilot operated principal (or indirect acting principal) with the purpose of providing a large volume of compressed air as a short pulse when energised. Pulse Valves feature a strong but light-weight diaphragm with a tight shut off and a large orifice to provide the maximum possible flow and fast operating speed. The bodies are made from lightweight aluminium and there are options for seal types, voltages and port sizes.

Ordering Code

BFEC DMF-Y-50S 2'' Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse Bag Filter

Main Dimension

DMF-Y-50S

Technical Data

Integral Pilot	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
					DMF-YA-76S	DMF-Y-102SA
					DMF-YB-76S	DMF-Y-102SE
Remote Pilot	MF-Y-25	MF-Y-40S	MF-Y-50S	MF-Y-62S	MF-Y-76S	MF-Y-102S
					MF-YA-76S	MF-Y-102SA
					MF-YB-76S	MF-Y-102SE
Diameter (Inch)	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Pulse Valve Series

Our Production

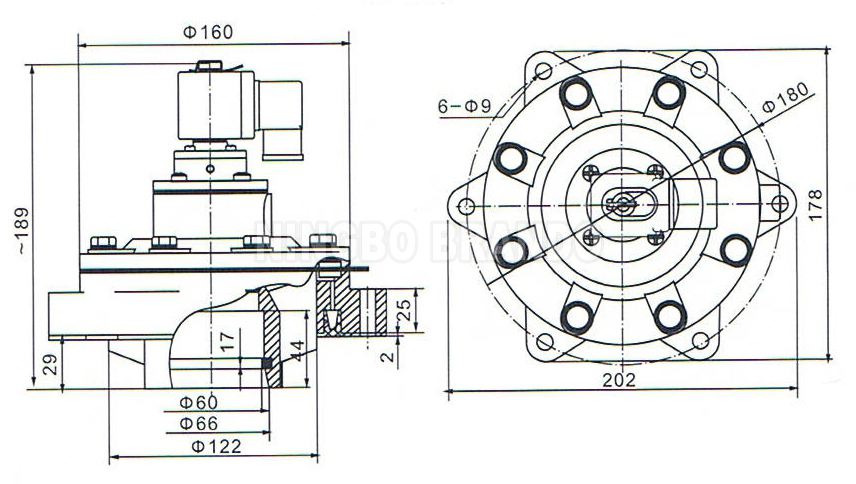

Dimension of DMF-Y-50S Pulse Jet Valve:

BFEC DMF-Y-50S 2'' Embedded Solenoid Pulse Jet Valve For Dust Collector Baghouse Bag Filter

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
