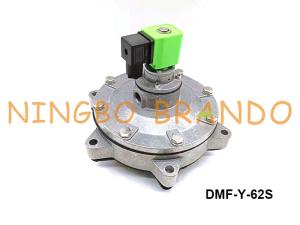

BFEC DMF-Y-62S 2.5'' Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter

Name: BFEC DMFY62S 25 Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter
Brand: Brando
Price: 1 USD

China BFEC DMF-Y-62S 2.5'' Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter factory

Brand Name : Brando

Model Number : DMF-Y-62S

Certification : CE, ISO

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10000 pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 2 1/2''

Valve Type : Submerged

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : NBR, FKM

Coil Voltages : 24VDC, 24VAC, 110VAC, 220VAC

Working Pressure Range : 0.1 To 0.8 MPa

Body Material : Aluminum Alloy

Application : Dust Collector

Contact Now

BFEC DMF-Y-62S 2.5'' Embedded Pulse Jet Valve For Dust Collector Baghouse

Products Description

Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

The fast opening and closing of the valve is of great importance for effective cleaning of filters and economical consumption of compressed air. This is made possible by keeping the weight of the moving parts small and therefore having a small inertia. These valves have very high kV values.

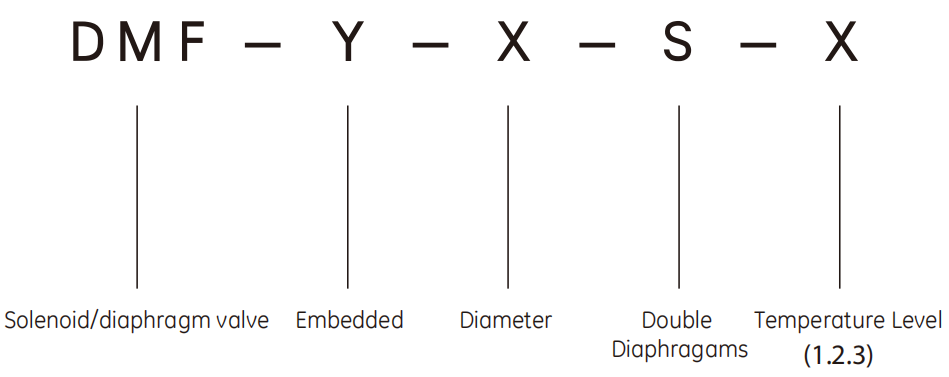

Ordering Code

BFEC DMF-Y-62S 2.5'' Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter

Main Dimension

DMF-Y-62S

Technical Data

Model Number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Diameter (Inch)	1''	1 1/2''	2''	2 1/2''	3''	4''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

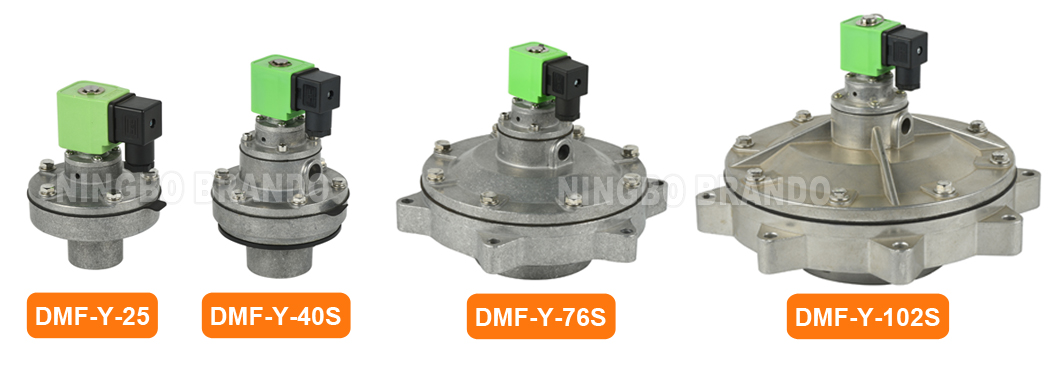

Pulse Valve Series

Our Production

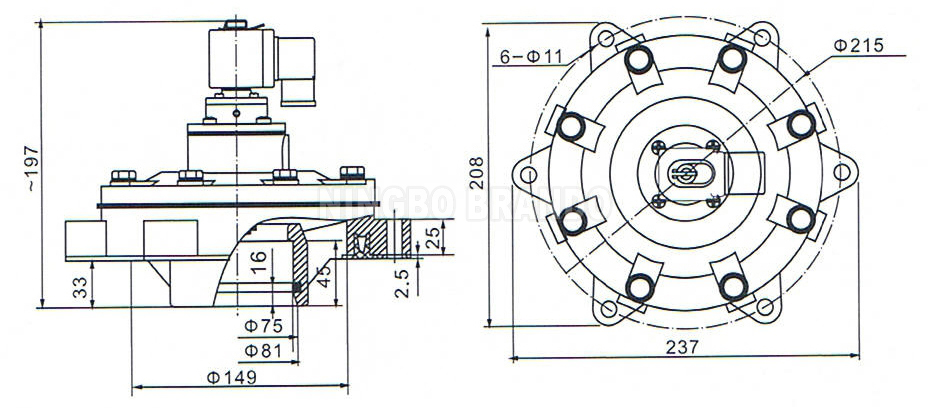

Dimension of DMF-Y-62S Pulse Jet Valve:

BFEC DMF-Y-62S 2.5'' Embedded Pulse Jet Valve For Dust Collector Baghouse Bag Filter

More BFEC Pulse Valves for you to choose:


Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type

Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
