24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

  • 1
  • 2

Brand Name : BRANDO

Model Number : BC-10-4

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Pulse Controller

Channel Number : 10

Input Voltage : 24VDC

Output Voltage : 24VDC

Pulse Width : 0.01 to 99.99s

Pulse Interval : 1 to 9999s

Cycle Interval : 1 to 6000s

Contact Now

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.

1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;
24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Technical Data:

Model No BC-08 BC-10 BC-12 BC-16 BC-20 BC-24 BC-30 BC-36 BC-52 BC-64
Channel No 8 10 12 16 20 24 30 36 52 64
Input Voltage 24VDC, 110VAC, 220VAC, other can be customized
Output Voltage 24VDC, 24VAC, 110VAC, 220VAC, other can be customized
Pulse Width 0.1 to 999.9 Seconds
Pulse Interval 1 to 9999 Seconds
Cycle Interval 1 to 9999 Seconds
Working Environment 1. -25°C to +55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock


Detailed Images:

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Controller Setting:

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Controller Wiring:

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Our Production:

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

Related Products:

24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector 24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector 24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector 24VDC Input 24VDC Output 10 Lines Pulse Valve Controller For Dust Collector

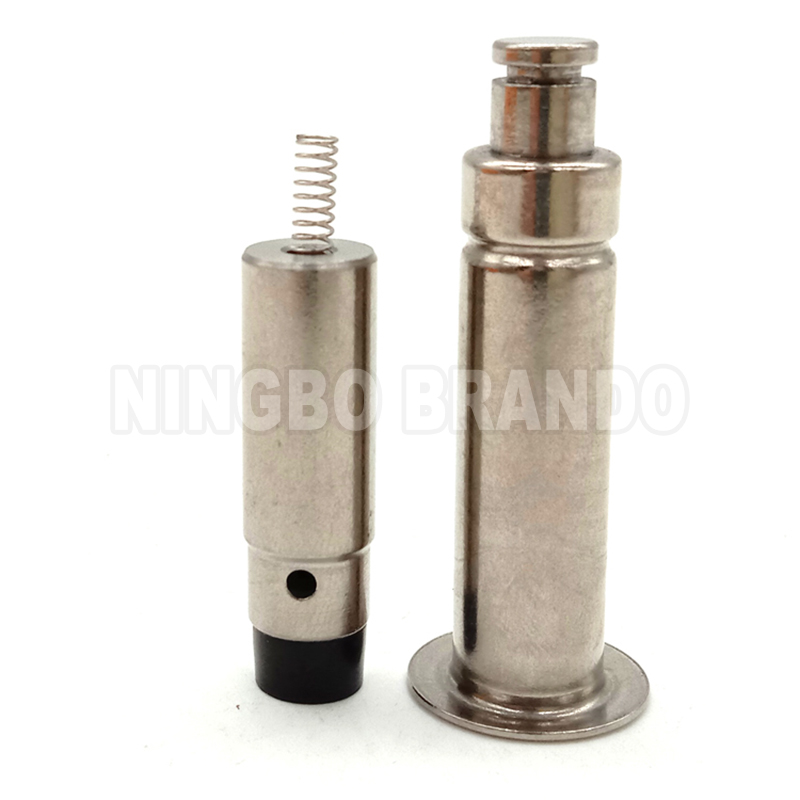

Pulse Valve Solenoid Coil Solenoid Armature Diaphragm
