DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V

Brand Name : BRANDO

Model Number : DMF-ZM-50S

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 8 pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Pulse Valve

Pipe Connection : Fixed Nut, Quick Mount

Port Size (inch) : 2''

Port Size (mm) : 60mm

Body Material : Aluminum

Diaphragm Material : NBR (Standard), FKM (Optional)

Voltage : 24VDC, 24VAC, 110VAC, 220VAC

Application : Dust Collector

Contact Now

DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type
4. Flanged Type
5. Straight Through Type

Technical Data:

Integral Pilot Model
DMF-ZM-20
DMF-ZM-25
DMF-ZM-40S
DMF-ZM-50S
Remote Pilot Model
MF-ZM-20
MF-ZM-25
MF-ZM-40S
MF-ZM-50S
Port Size

3/4''

(27mm)

1''

(34mm)

1-1/2''

(48mm)

2''

(60mm)
Diaphragm Number
1
1
2
2
Body Material
Aluminum
Diaphragm Material
NBR (Standard), FKM (Optional)
Working Pressure
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

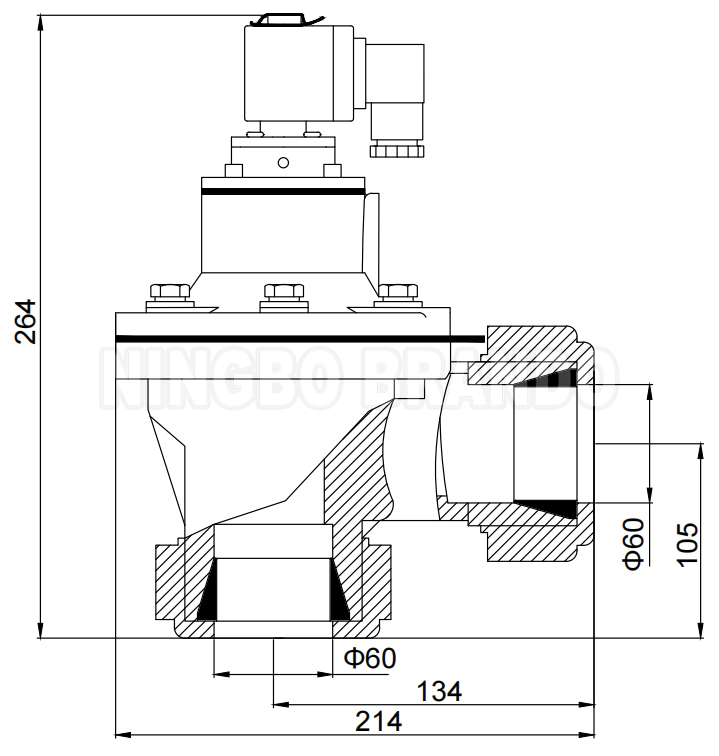

DMF-ZM-50S Dimension:

DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V

Our Production:

DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V

Related Products:

DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V DMF-ZM-50S 2'' Dresser Nut Pulse Jet Valve For Dust Collector 24V 220V
Coil Armature Diaphragm Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
