BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Brand Name : BRANDO

Model Number : MF-ZM-20

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Remote Pilot Pulse Valve

Structure : Right Angle, Fixed Nut

Remote Pilot Size : 1/8'', 1/4''

Port Size : 27mm

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.1 to 0.8 MPa

Contact Now

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type

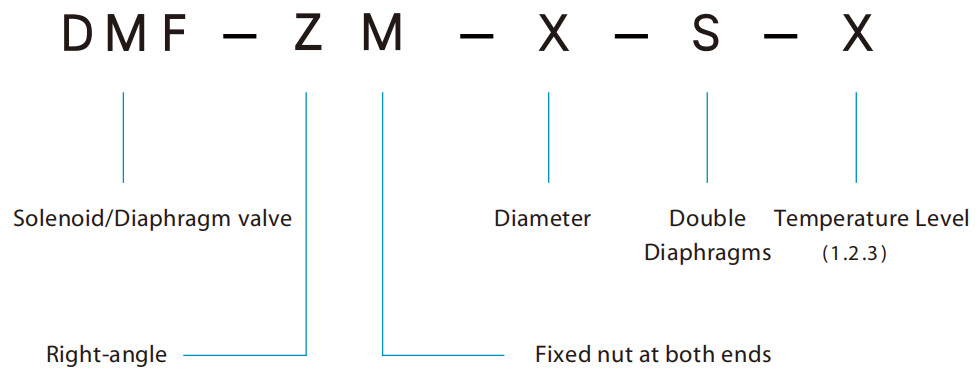

Ordering Code of ZM Series Pulse Valve:

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Dimension of MF-ZM-20 Pulse Valve:

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Technical Data of ZM Series Fixed Nut Pulse Valve:

Integral Pilot
DMF-ZM-20
DMF-ZM-25
DMF-ZM-40S
Remote Pilot
MF-ZM-20
MF-ZM-25
MF-ZM-40S
Connection Size (mm)
27
34
48
Diaphragm Number
1
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Coil Voltage
24VDC, 24VAC, 110VAC, 220VAC
Pressure Range
0.1 to 0.8 MPa

Related Products:

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector
Pneumatic Fitting Diaphragm Remote Pilot Enclosure Pulse Controller

Production Picture of Pulse Valve:

BFEC MF-ZM-20 Fixed Nut Remote Pilot Pulse Jet Valve For Dust Collector

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
